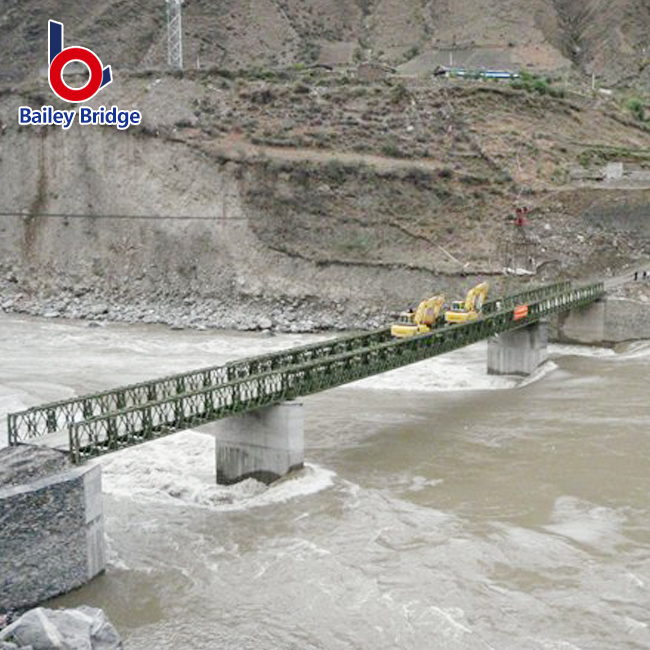

For procurement officers, military logisticians, and emergency response planners, access infrastructure operates on a strict binary metric. It either deploys in time to restore operations, or it fails entirely. Standard infrastructure often succumbs to acute environmental stress or sudden combat conditions. These structural failures instantly sever vital supply lines when personnel need them most. The Compact 321 Bailey Bridge represents the modern, standardized evolution of modular bridging. Engineers designed it specifically to address the severe logistical bottlenecks of heavy transport in compromised environments. Evaluating this structure requires moving far beyond basic load capacity charts. You must thoroughly understand its specific rollout realities, rigid compliance thresholds, and overall supply chain reliability. The following sections will guide you through these exact evaluation metrics. You will learn how precise engineering transforms standard steel components into resilient, operational lifelines.
Performance: The Compact 321 offers a superior strength-to-weight ratio compared to older modular iterations, supporting heavier dynamic loads (e.g., armored vehicles, aid convoys).
Deployment: As a highly engineered rapid assembly bridge, it requires minimal heavy machinery, relying on standard pin-and-chord connections for expedited manual or light-crane construction.
Risk Mitigation: Successful procurement relies on verifying strict metallurgical standards (e.g., Q345B steel) and ensuring supplier transparency regarding anti-corrosion treatments and load-testing certifications.
Application: It remains the definitive portable temporary bridge for bridging spans up to 60+ meters in high-stress, low-infrastructure environments.
Standard infrastructure routinely fails under acute stress. Earthquakes shatter rigid concrete pylons. Flash floods wash away traditional earthen abutments. Combat scenarios destroy permanent highway overpasses. When these access points disappear, logistics teams face an immediate crisis. Legacy portable bridges often lack the necessary span-to-load capacity required for modern heavy logistics. Older designs buckle under the weight of contemporary transport trucks and armored vehicles. They simply cannot safely clear wide, unsupported gaps.
The Compact 321 provides a robust, engineered solution to these historical shortcomings. It features vital iterative improvements over the older Compact 100 models. Designers increased the standard lane width to accommodate wider modern vehicles safely. They also significantly increased the structural panel strength. This higher strength threshold allows logistics teams to push heavier traffic across longer spans without mid-river support piers.
Component standardization drives the success of this system. Interchangeable parts drastically reduce inventory complexity. Field engineers do not waste time sorting through unique, site-specific pieces. Every standard chord, pin, and transom fits uniformly. This interchangeable nature virtually eliminates field-assembly friction. Crews work faster, and projects face fewer delays caused by missing specialized parts.
Historically, modular bridging evolved through various distinct iterations. You will often see references to US designs, UK models, and Mabey Dynamics variants. While early UK and US military models pioneered the original panel-bridge concept, the 321 variant refined it. The global engineering community now widely accepts the Compact 321 as a definitive standard for heavy-duty requirements. It successfully merged the simplicity of original designs with the high-tensile material capacities demanded by modern structural codes.
Feature Comparison | Legacy Modular (Compact 100) | Compact 321 Standard |
|---|---|---|
Lane Clearance | Narrower width restricts wide loads | Wider clearance for modern transport |
Panel Strength | Standard steel yield | High-tensile steel, reinforced chords |
Max Single-Span Capacity | Limited for heavy dynamic loads | Extends safely up to 60+ meters |
Every deployment environment presents unique logistical challenges. Proper evaluation requires mapping specific structural features to expected field outcomes. You must align the bridge capabilities directly with user demands.
Modern military operations demand a strictly compliant high load class. Structures must meet rigorous Military Load Classification (MLC) standards. Terrain remains highly unpredictable, often lacking stable riverbanks. Combat engineers need equipment they can launch over gaps under severe time constraints.
The modular truss system delivers exact tactical outcomes. It allows the rapid deployment of a reliable portable temporary bridge. This structure easily supports heavy armored transport vehicles. Furthermore, engineers can equip it with reinforced decking specifically designed to handle aggressive track-tread wear from tanks.
Emergency responders prioritize absolute speed of transport. When natural disasters strike, rescue teams face aftershocks, debris flow, and secondary flooding. Heavy, rigid bridges cannot survive shifting ground conditions.
The 321 system solves this through packability and flexibility. Crews can pack all necessary components onto standard flatbed trucks. This ensures swift delivery to remote impact zones. Additionally, the pin-jointed truss design provides inherent seismic flexibility. It absorbs lateral forces and ground shifts far better than rigid concrete structures. This flexibility prevents total structural collapse during dangerous aftershocks.
Isolated rural communities face completely different access bottlenecks. They require longevity and minimal maintenance. Local governments need systems they can integrate smoothly into unpaved or semi-paved regional road networks. Massive capital expenditure is rarely an option.
To meet these requirements, manufacturers offer hot-dip galvanized steel components. Galvanization provides resilient 15–20 year lifespans for semi-permanent use. This effectively solves immediate economic bottlenecks. Rural farmers can finally transport goods to regional markets year-round without waiting for impossible infrastructure funding.
Procuring a highly engineered access structure requires strict attention to material standards. The steel grade dictates the ultimate success of the project. High-tensile structural steel, such as Q345B or its international equivalents, provides the necessary yield strength. This specialized steel prevents structural deflection under massive dynamic loads. You must also evaluate surface treatments. Hot-dip galvanization dramatically reduces lifecycle maintenance costs compared to standard paint. Paint chips easily during transit and assembly, exposing raw steel to rapid oxidation in humid environments.
You must establish transparent load and span limits early in the planning phase. Maximum unsupported spans change drastically relative to assigned load classes. Engineers configure these bridges in various arrangements to meet specific demands.
Single-lane vs. Double-lane: Single-lane configurations maximize span length, while double-lane setups require heavier supporting trusses to manage passing loads.
Single-reinforced vs. Double-reinforced: Adding extra truss rows and stories increases the load capacity exponentially. Crews can build them as single-single, double-single, or triple-double configurations.
Deflection limits: Proper engineering ensures the mid-span sag remains well within safe operational limits when heavy trucks cross.
Authoritative compliance dictates legal and operational safety. A quality bridge system must align strictly with international bridge design codes. Engineers often reference AASHTO (American Association of State Highway and Transportation Officials) standards. They also look at FHWA guidelines for prefabricated structures. For earthquake-prone regions, strict adherence to established seismic design criteria is absolutely non-negotiable.
Truss Configuration | Typical Span Range | Primary Application |
|---|---|---|
Single-Single (SS) | 9m - 24m | Light vehicle access, foot traffic |
Double-Single (DS) | 24m - 36m | Standard highway trucks, relief convoys |
Triple-Double (TD) | 45m - 60m+ | Heavy armored transport, wide crossings |
Procuring the physical components represents only half the challenge. Teams frequently underestimate critical implementation risks in the field. Site preparation constraints routinely delay operations. Any rapid assembly bridge remains only as fast as its abutment preparation. You must carefully address local soil bearing capacity. Soft, waterlogged riverbanks cannot support the immense point loads generated during the launching phase. Engineers must stabilize banks and construct proper grillage before assembly begins.
Component fatigue poses another hidden risk. Procurement teams often treat these systems as purely temporary. However, reality shows they often stay in place for decades. Dynamic load fatigue compounds over time. Continuous heavy traffic vibrates the connections and flexes the panels. When authorities leave temporary bridges in place for years, they must enforce strict, routine inspection regimens. Maintenance teams must check for excessive pin wear, loose bolts, and permanent panel deflection.
Assembly bottlenecks also derail deployment timelines. Unskilled labor can easily move panels and insert pins. However, the true requirement lies in highly trained supervision. The launching phase requires absolute precision. If the launching nose is not perfectly level, or if the rollers sink unevenly, the entire structure can bind. Poor leveling creates massive internal friction. This structural binding stops the launch entirely and can lead to dangerous mechanical failures on site.
Choosing the right manufacturing partner mitigates field risks before deployment even begins. You must demand absolute manufacturing transparency from any potential vendor. Request certified mill test reports for all structural steel batches. Do not accept unverified materials. Furthermore, demand documented ultrasonic or magnetic particle testing results for critical welds. Weld failure under a dynamic load causes immediate structural collapse.
Evaluate their logistical support capabilities carefully. A trusted vendor does more than ship steel panels. They provide comprehensive launching manuals tailored to your specific configuration. They supply ample spare parts, including extra pins, sway braces, and bolts, because crews invariably drop items into rivers. Crucially, top-tier vendors offer on-site engineering supervision to guide local crews through the launching phase safely.
You must also balance customization against standardization. Custom deck widths or unique guardrails sound appealing for specific projects. However, custom parts destroy the lead-time advantages of off-the-shelf components. Standard 321 components ship faster and assemble easier.
Define constraints: Measure the exact span and document expected axle loads.
Request documentation: Ask vendors for steel mill certificates and weld inspection reports.
Verify support: Confirm the availability of deployment manuals and spare parts.
Draft the RFP: Move from technical evaluation to Request for Proposal.
Your next-step action involves finalizing these details. Specify your exact expected load class, maximum unsupported span, and environmental conditions in your formal RFP.
The Compact 321 Bailey Bridge is not a basic, one-size-fits-all commodity. It functions as a highly specific engineering tool designed explicitly to solve acute access failures. Properly deployed, it restores vital infrastructure in days rather than years. It bridges the critical gap between disaster and recovery.
A successful procurement verdict hinges on exact alignment. You must align the modular configuration with your precise field constraints. You must also rigorously vet all supplier manufacturing standards before signing contracts. Skimping on steel quality or site preparation guarantees failure in the field.
Take proactive steps today to secure your infrastructure networks. Contact a specialized structural engineering team. Request a detailed span-to-load structural analysis tailored for your specific geographic and logistical project requirements.
A: The Compact 321 features taller panels, thicker chord reinforcements, and a wider internal lane clearance. These specific design upgrades allow the 321 to handle significantly higher dynamic load limits and safely accommodate wider modern transport vehicles compared to the older Compact 100 series.
A: Deployment speed depends heavily on span length, crew experience, and site readiness. A standard 30-meter single-span configuration generally takes a trained crew of 15 people roughly 3 to 5 days to assemble and launch. Claims of overnight deployment usually ignore mandatory abutment preparation time.
A: Yes, communities frequently use them for semi-permanent or permanent applications. However, long-term use requires hot-dip galvanized steel components to prevent rust. It also demands a strict, ongoing maintenance schedule to inspect pin wear and manage dynamic load fatigue over decades of continuous traffic.
A: Yes. When configured with the correct number of reinforcing trusses (like double-single or triple-double setups), they fully comply with standard highway agency guidelines, such as AASHTO. They safely support standard commercial truck axle loads without dangerous structural deflection.
