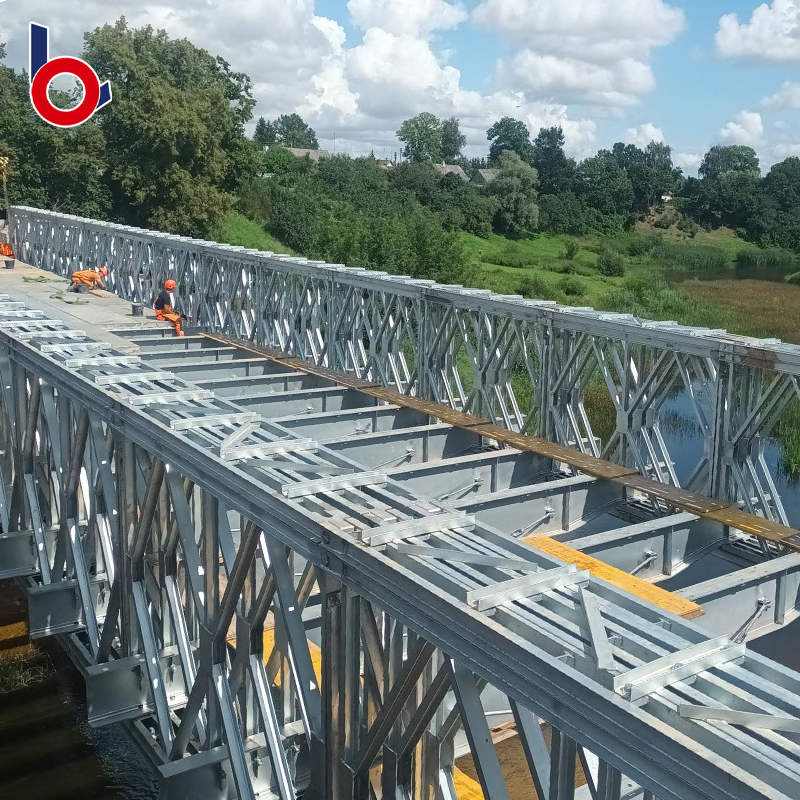

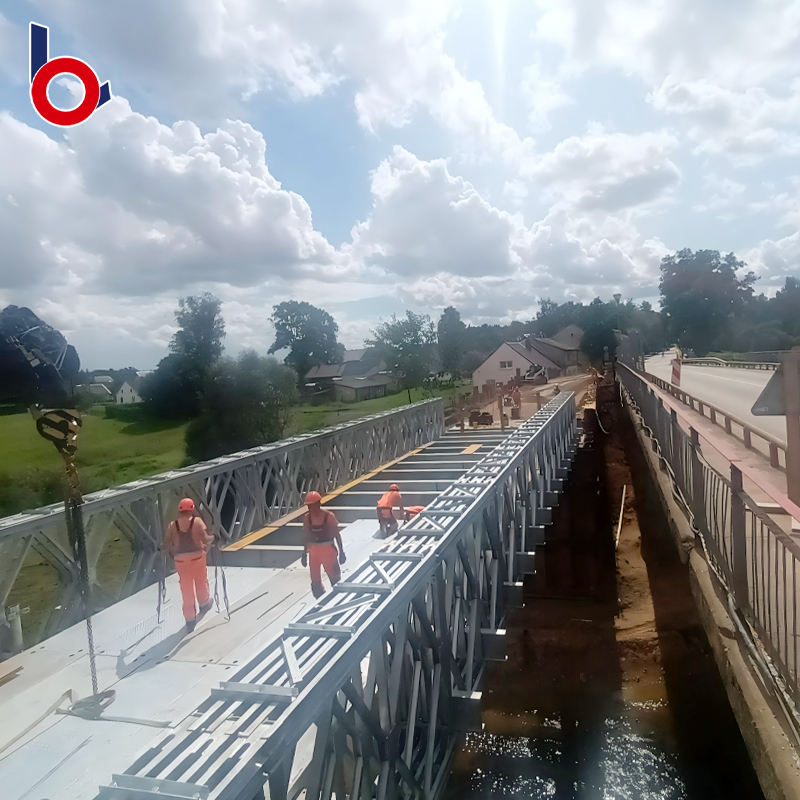

The CB200 High Shear Truss Unit is a professional-grade product designed to withstand high shear forces in bridge structures. This truss unit is specifically engineered for the sections of bridges that experience significant shear stress.

Featuring a robust construction, the CB200 High Shear Truss Unit incorporates 5x60x80 rectangular hollow steel sections for its vertical and diagonal members, while the remaining components and main dimensions adhere to standard truss specifications. With a weight of 348 kg, this truss unit offers exceptional strength and durability.

In addition to its primary application in bridge construction, the CB200 High Shear Truss Unit can also be utilized as a specialized bridge segment, allowing for the assembly of unique bridge designs. Whether used as a key component in bridge construction or as part of a specialized bridge structure, this high-quality truss unit guarantees reliable performance and longevity.



                                                      Overview

                                          --------------------------------------▶▶▶--------------------------------------

Product Details

Standard:                     ASTM, BS, GB                                                                                                        Grade:                   Q345B-Q460C

Place of Origin:           Jiangsu, China                                                                                                       Brand Name:        BAILEY

Model Number:          JSBLGQ-HD200-071                                                                                              Type:                     Heavy

Application:                Steel Structure Bridge                                                                                            Tolerance:             ±3%

supply Ability:            10000.0 Ton/Tons per Year

Packaging Details:      packing in containers or bulk

Port of Loading:         Any port of China, main port is Shanghai port

                                                            Bailey Bridge Diagram

                                   --------------------------------------▶▶▶--------------------------------------

ZB200 truss press limited table
		structure form
No	internal force	not reinforced model				reinforced model
		SS	DS	TS	QS	SSR	DSR	TSR	QSR
200	standard truss moment(kN.m）	1034.3	2027.2	2978.8	3930.3	2165.4	4244.2	6236.4	8228.6
200	standard truss shear (kN)	222.1	435.3	639.6	843.9	222.1	435.3	639.6	843.9
201	high bending truss moment(kN.m）	1593.2	3122.8	4585.5	6054.3	3335.8	6538.2	9607.1	12676.1
202	high bending truss shear(kN)	348	696	1044	1392	348	696	1044	1392
203	Shear force of super high shear truss(kN)	509.8	999.2	1468.2	1937.2	509.8	999.2	1468.2	1937.2

ZB200 Table of geometric characteristics of truss bridge（Half bridge）
structure	geometric characteristics
	geometric characteristics	chord area(cm2)	Section properties（cm3）	Moment of inertia(cm4)
SS single-row, single-layer	SS single-row,single-layer	25.48	5437	580174
	SSR single-row,single-layer, reinforce	50.96	10875	1160348
DS double-row, single-layer	DS double-row,single-layer	50.96	10875	1160348
	DSR1 double-row,single-layer, reinforced	76.44	16312	1740522
	DSR2 double-row,single-layer, reinforced only on the top	101.92	21750	2320696
TS triple-row, single-layer	TS triple-row,single-layer	76.44	16312	1740522
	TSR2 triple-row,single-layer, reinforced only on the top	127.4	27185	2900870
	TSR3 triple-row,single-layer, reinforced only at the bottom	152.88	32625	3481044
QS quadruple-row, single-layer	QS quadruple-row,single-layer	101.92	21750	2320696
	QSR3 quadruple-row,single-layer, reinforced only on the top	178.36	38059	4061218
	QSR4 quadruple-row,single-layer, reinforced only at the bottom	203.84	43500	4641392

                                        Product  Parameters

                                                    --------------------------------------▶▶▶--------------------------------------

 Company's production was exported tomany countries,such as   Nigeria.Angla,Congo,Cambodia,Nepal,Venezuela,Vietnam,Philppines,Bangladesh,Laos,Papua New Guinea   and so on.

Kamchay hydropower station in Cambodia

KAMCHAY (Cambodia) hydropower station the provincial governor of Kampot and the military andgovernment officials attending the ribbon-cutting ceremony for the bridge's being open to traffic.

India in memory of this great man

A bailey bridge(225m long, deck-type) was erected in 2018 when a bronze statue(the highest in theworld) of indian lron Man named Patel was cast in Gujarat, India in memory of this great man.

Celebration of opening of 10 steel bridges aided by guinea

A celebration for the completion of 10 bailey bridges in Macenta,The Republic of Guinea in May ,2018.



                                       Product  Process

                                 --------------------------------------▶▶▶--------------------------------------

                                                       Development History

                                  --------------------------------------▶▶▶--------------------------------------

2006Year	The company was solemnlyestablished and participatedin the construction ofSichuan Niangyong and Banduo HydropowerProjects in the same year.
2007Year	Shanghai ConstruetionEngineering BeicaiMunicipal (overnment andTaizhou River CrossingBridge.
2008Year	The Ministry of Foreign Tradewas established,CambodiaGianzai Hydropower Station and the domesticShanwei-Xiamen-ShenzhenRailway.
2009Year	Participated in the elevatesupport of the ShanghaiJiangong Shangnan RoadInterchange at the WorldExpo and the GuoyangLaozi Temple LandscapeBridge in Anhui.
2010Year	Participation in the construetion of Cambodia's Elezhai Hydropower Station and Stenwodai HydropowerStation and the steel bridge projeet of Oinghai XunhuaHydropower System.
2011Year	The Wenchuan Earth quakeassisted in the construetion of the export of steelbridges to lrag.

2012Year	Henan Zhengzhou FoxconnTraffie Bridge, Sichuan XixiheHydropower Station LhasaBangduo Hydropower StationSteel Bridge Proieet. ete.
2013Year	Angola and OuterMongolia steel bridge export tasks and Xiningand Tianjin steel bridge projects.
2014Year	Philippine exports and the construction of Shangri-LaYunnan in Hotan, Xinjiang 67-meter pipeline bridge inFengxiang，Shanxi,and137-meter steel bridge inYancheng China Railway.
2015Year	Singapore Super Bere Bridge,Nepal,Guatemala.India Patel 180-meter bronze statue construction 225-meter steel bridge and other projects.
2016Year	Congo Golden Steel Bridge Export，Shanghai Baosteel Xinjiang Kanas ForestryBureau,Zhenjiang Wetland Park Steel Bridge Project，Sanya Hongtang Airport 10.000-pile Bere Tablet Project started.
2017Year	Changzhou Longhutang Metro Station Metro Line 2 Beirejia Steel BridgeProjeet in Zhaosu County,Atushi. Hemu County，Xinjiang，Bozhou, Anhui.

2018Year	The Philippines and NepalShangmaxiangdi Hydropower Station，andthe Hidalaya Third Bridge Steel Bridge Project in Bangladesh.
2019Year	Shandong China Railway16 steel bridges in Beitun，Xinjiang，Shihezi pipegallery bridge， Shantousupport，etc.,exported toIndonesia.
2020Year	Sangyuanzi Bridge across theYellow River in Lanzhou.Gansu.Sichuan Road Bridge 200 type deck full-heightshear-resistant Beley Bridge，Xinjiang Horgos steel bridge project, Linzhi, Tibet，ete.
2021Year	What will Jiangsu BeileSteel Bridge Co.，Ltd. look like in the future? Please look for ward to it.
