Project Showcase:
A 30.5m Prefabricated Steel Bridge in Yan'an, China
Project Vitals:
Location: Zhiluo Town, Fu County, Yan'an City, Shaanxi Province, China
Span Length: 30.48 meters (100 feet)
Bridge Model: Type 200 Modular Steel Truss
Configuration: Double-Row, Single-Layer, Reinforced (DSR), Through-Type
Application: Semi-permanent, Single-Lane Public Road Bridge

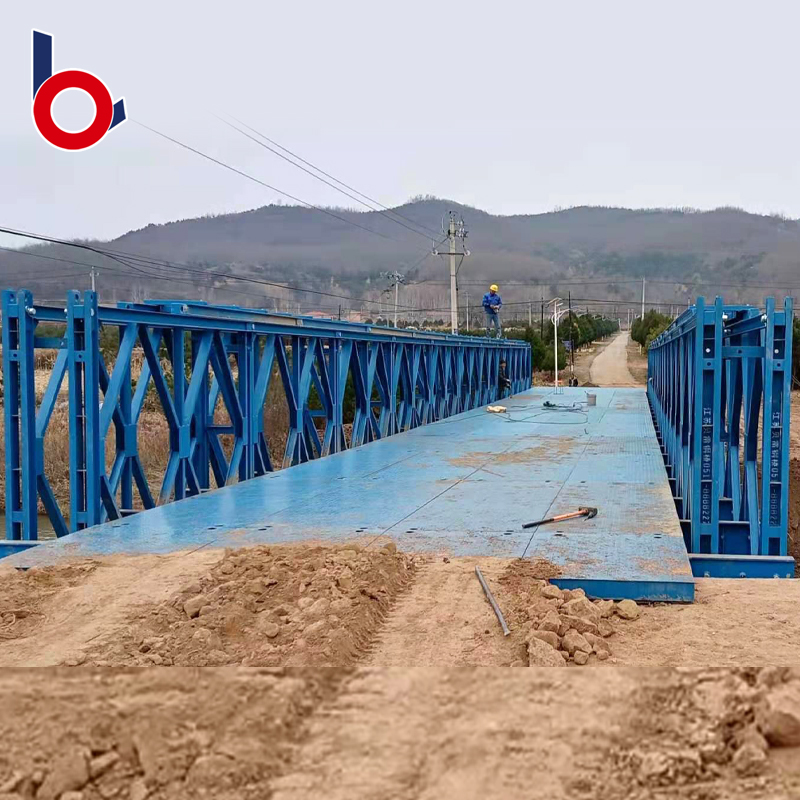

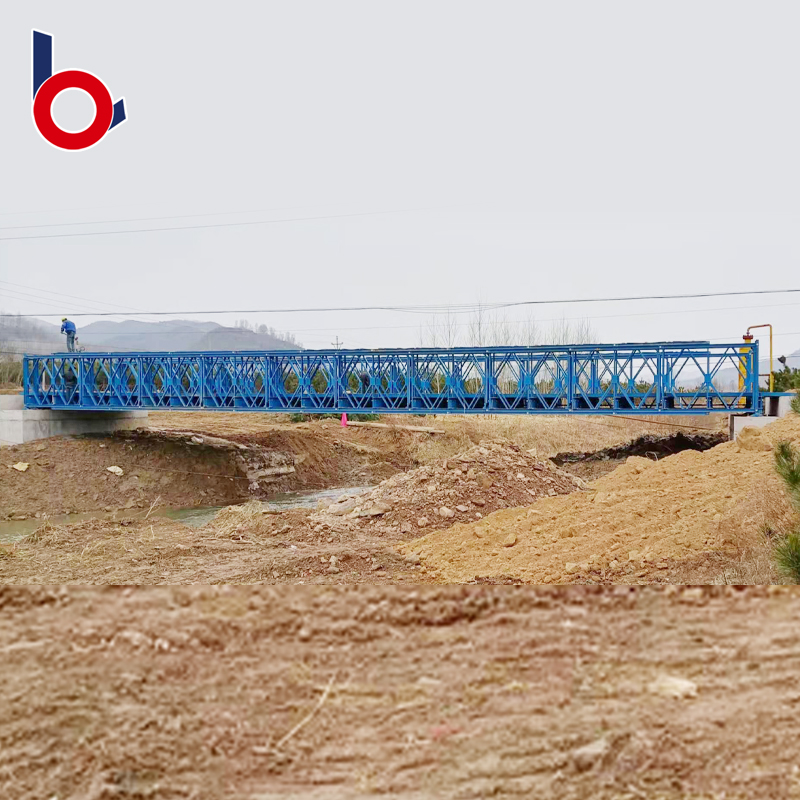

Steel Bridge in Yan'an, China
Steel Bridge in Yan'an, China

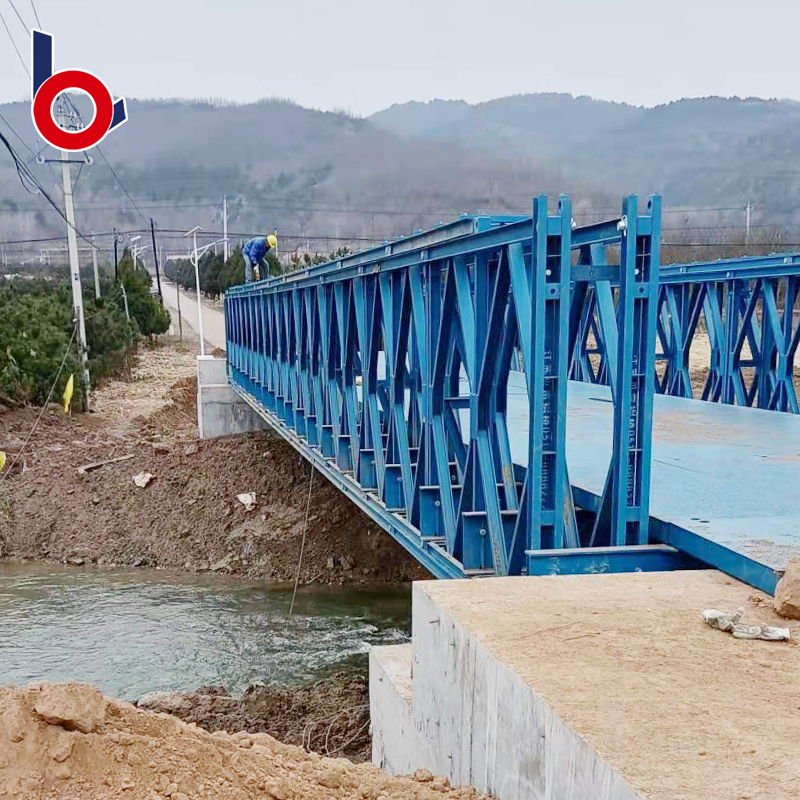

Steel Bridge in Yan'an, China

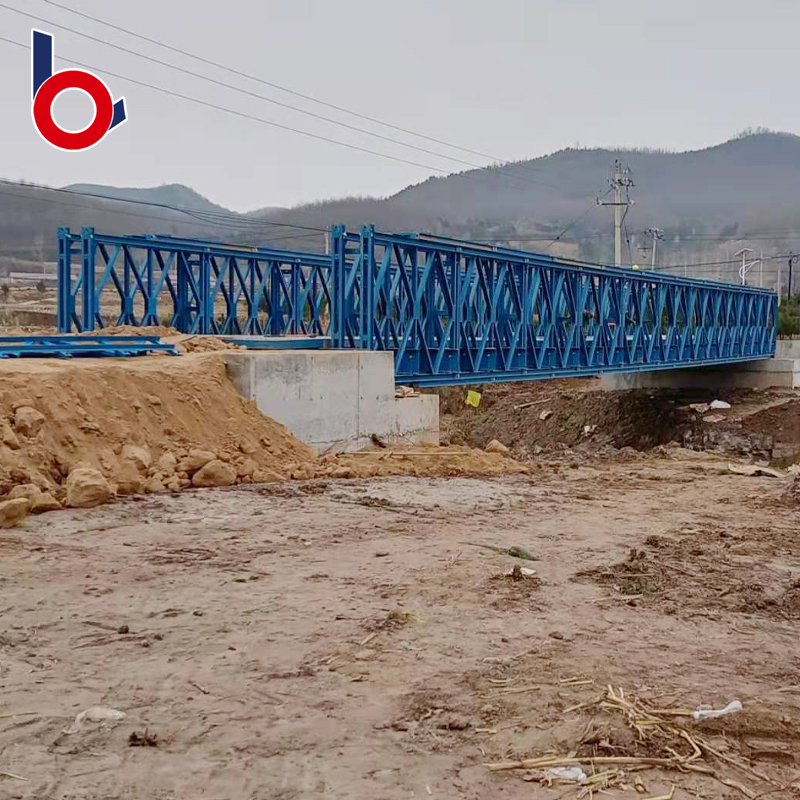

Steel Bridge in Yan'an, China
A Robust Infrastructure Solution for a Historic Region: Located in Yan'an, a region of great historical significance in China, this project called for a reliable and durable bridge to improve local transportation infrastructure. The goal was to deliver a long-term crossing to connect communities and facilitate the movement of goods and
people.
Engineering Highlights & A High-Performance Design:
Proven Heavy-Load DSR Configuration: This bridge utilizes the highly-efficient Double-Row, Single-Layer, Reinforced (DSR) truss configuration. The DSR setup is a preferred solution for heavy-load applications, providing exceptional strength and rigidity in a cost-effective, single-story format.
Engineered for Demanding Traffic: The structure is engineered to span 30.48 meters (100 feet) in a single stretch and is rated for a 50-ton load capacity, making it perfectly suited for heavy trucks and other standard road vehicles.
Safe, Through-Type Carriageway: As a "through-type" bridge, the 4.2-meter-wide single-lane roadway passes between the main trusses. This inherently safe design means the robust side trusses act as protective barriers for traffic.
Durable Semi-Permanent Structure: All steel components are finished with a high-performance anticorrosive paint system, ensuring excellent weather resistance. This classifies the bridge as a semi-permanent structure, designed for a long and low-maintenance service life.
A Classic Application of Versatile Modular Bridging: The Yan'an bridge is a textbook example of the Type 200 DSR system's suitability for municipal and rural infrastructure. It demonstrates a perfect balance of strength, value, and rapid installation, making it an ideal turnkey solution for public works projects.
