type-200 bailey bridges

  our company specializes in manufacturing, researching and developing bailey bridge parts.

                                   Core Advantages

                                               --------------------------------------▶▶▶--------------------------------------

                                            Product Description

                                          --------------------------------------▶▶▶--------------------------------------

Product Details

Standard:                        ASTM, BS, GB                                                                                                        Product name:     Bailey steel bridge

Place of Origin:              Jiangsu, China                                                                                                       Brand:                   Jiangsu Bailey

Steel material grade:    Q355B                                                                                                                    Type:                     Heavy

Units of measurement: Piece                                                                                                                      Tolerance:             ±3%

supply Ability:               10000.0 Ton/Tons per Year

Is customization OK:    OK

Port of Loading:            Any port of China, main port is Shanghai port

                                                            Bridge Parts Display

                                   --------------------------------------▶▶▶--------------------------------------

ZB200 truss press limited table
		structure form
No	internal force	not reinforced model				reinforced model
		SS	DS	TS	QS	SSR	DSR	TSR	QSR
200	standard truss moment(kN.m）	1034.3	2027.2	2978.8	3930.3	2165.4	4244.2	6236.4	8228.6
200	standard truss shear (kN)	222.1	435.3	639.6	843.9	222.1	435.3	639.6	843.9
201	high bending truss moment(kN.m）	1593.2	3122.8	4585.5	6054.3	3335.8	6538.2	9607.1	12676.1
202	high bending truss shear(kN)	348	696	1044	1392	348	696	1044	1392
203	Shear force of super high shear truss(kN)	509.8	999.2	1468.2	1937.2	509.8	999.2	1468.2	1937.2

ZB200 Table of geometric characteristics of truss bridge（Half bridge）
structure	geometric characteristics
	geometric characteristics	chord area(cm2)	Section properties（cm3）	Moment of inertia(cm4)
SS single-row, single-layer	SS single-row,single-layer	25.48	5437	580174
	SSR single-row,single-layer, reinforce	50.96	10875	1160348
DS double-row, single-layer	DS double-row,single-layer	50.96	10875	1160348
	DSR1 double-row,single-layer, reinforced	76.44	16312	1740522
	DSR2 double-row,single-layer, reinforced only on the top	101.92	21750	2320696
TS triple-row, single-layer	TS triple-row,single-layer	76.44	16312	1740522
	TSR2 triple-row,single-layer, reinforced only on the top	127.4	27185	2900870
	TSR3 triple-row,single-layer, reinforced only at the bottom	152.88	32625	3481044
QS quadruple-row, single-layer	QS quadruple-row,single-layer	101.92	21750	2320696
	QSR3 quadruple-row,single-layer, reinforced only on the top	178.36	38059	4061218
	QSR4 quadruple-row,single-layer, reinforced only at the bottom	203.84	43500	4641392



                                                       Wide range of application

                                                --------------------------------------▶▶▶--------------------------------------

                     Partial Cooperation Case Display

                                                    --------------------------------------▶▶▶--------------------------------------

 Company's production was exported tomany countries,such as   Nigeria.Angla,Congo,Cambodia,Nepal,Venezuela,Vietnam,Philppines,Bangladesh,Laos,Papua New Guinea   and so on.

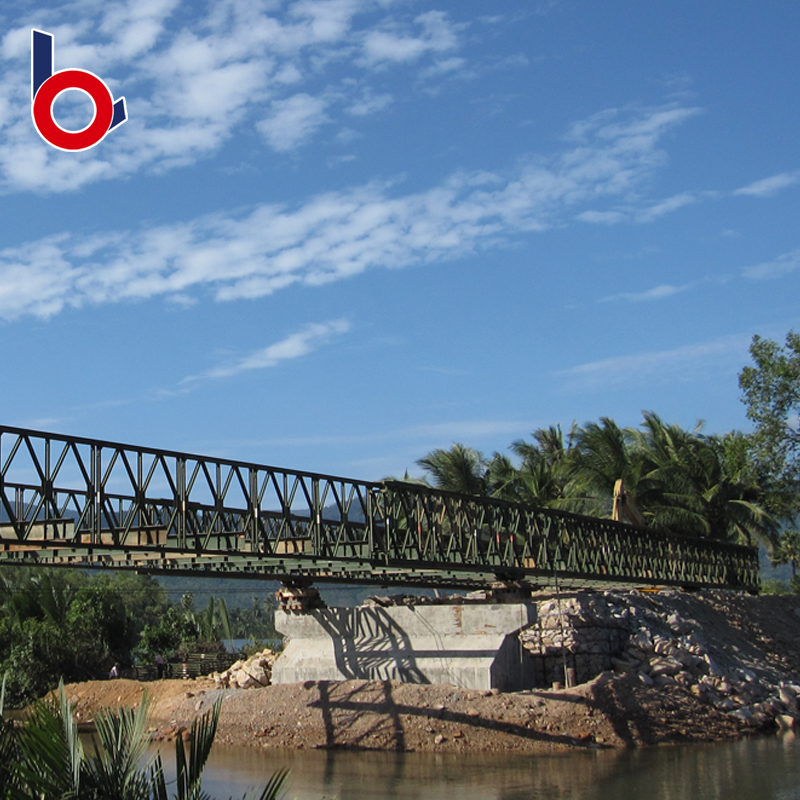

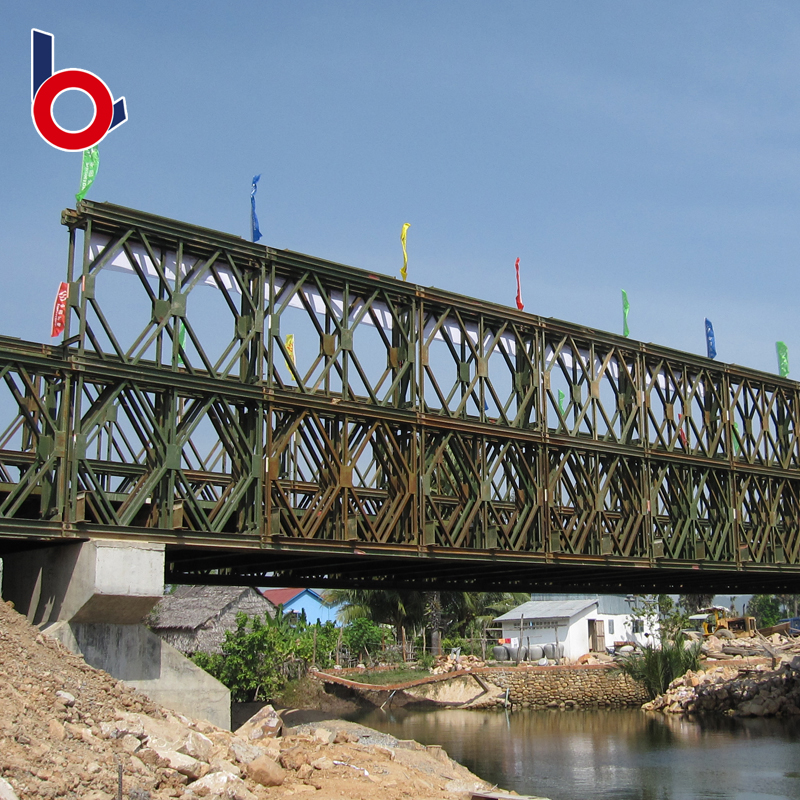

Kamchay hydropower station in Cambodia

KAMCHAY (Cambodia) hydropower station the provincial governor of Kampot and the military andgovernment officials attending the ribbon-cutting ceremony for the bridge's being open to traffic.

Project: Access Bridge for Kamchay Hydropower Station, Cambodia

Project Background:

The Kamchay Hydropower Station in Kampot province is a national-level energy project of great importance to Cambodia. During its construction and for its subsequent long-term operation, a permanent bridge capable of handling heavy equipment and vehicles was essential to cross the river, connecting the dam site to the main road network. The steel bridge we provided serves as a critical piece of this vital infrastructure.

Bridge Solution & Highlights:

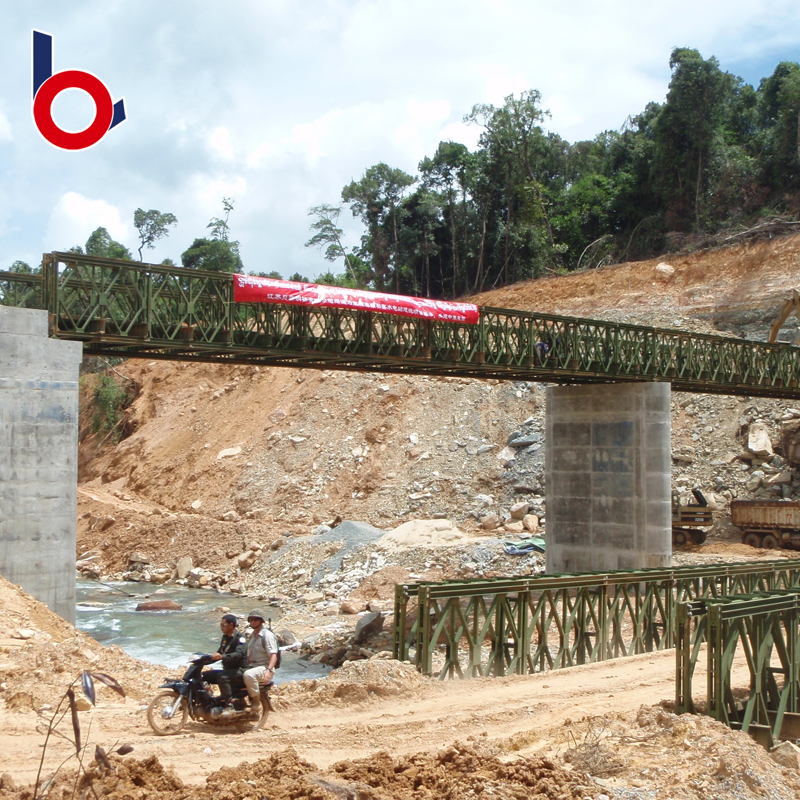

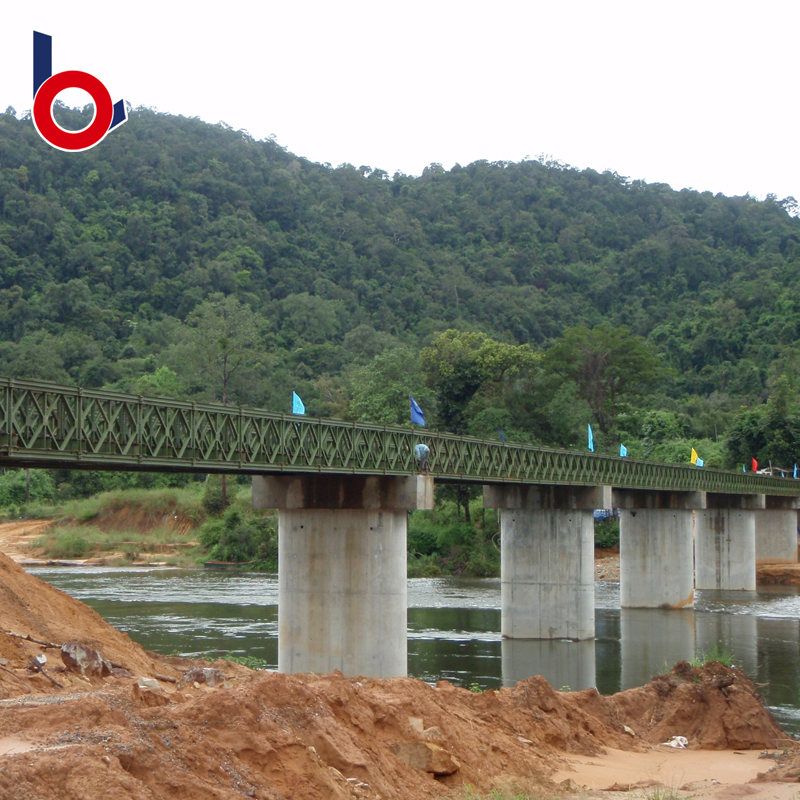

Permanent Multi-Span Structure: A key feature of this project is its multi-span design. As the photos illustrate, our steel truss superstructure is installed upon a series of permanent, reinforced concrete piers. This "composite" or "hybrid" approach is highly effective, combining the durability and strength of a concrete substructure with the key advantages of a Bailey-type superstructure—namely, rapid and lightweight installation. This is a common and efficient design for major engineering projects.

Serving a National-Level Project: As the main access route for a major hydropower plant, the bridge was engineered to meet the stringent demands of long-term, high-intensity use, ensuring safe passage for construction traffic and operational maintenance vehicles.

Social Significance: Completed around December 2008, the project's importance is highlighted by the large-scale inauguration ceremony shown in the photos, attended by officials and the local community. This bridge not only enabled the successful construction and operation of the power station but also significantly improved local transportation, becoming a permanent and beneficial piece of public infrastructure.

Project Significance:

This project, dating back to 2008, demonstrates our company's long-standing experience in serving major international energy and infrastructure developments. It proves our products can be seamlessly integrated into permanent engineering works, offering clients a solution that is economical, time-efficient, and durable through the effective use of a steel superstructure on a concrete substructure.

                                          Our Advantage:

                       Advanced Equipment:Welding robots

                                 --------------------------------------▶▶▶--------------------------------------

                                                       Development History

                                  --------------------------------------▶▶▶--------------------------------------

2006Year	The company was solemnlyestablished and participatedin the construction ofSichuan Niangyong and Banduo HydropowerProjects in the same year.
2007Year	Shanghai ConstruetionEngineering BeicaiMunicipal (overnment andTaizhou River CrossingBridge.
2008Year	The Ministry of Foreign Tradewas established,CambodiaGianzai Hydropower Station and the domesticShanwei-Xiamen-ShenzhenRailway.
2009Year	Participated in the elevatesupport of the ShanghaiJiangong Shangnan RoadInterchange at the WorldExpo and the GuoyangLaozi Temple LandscapeBridge in Anhui.
2010Year	Participation in the construetion of Cambodia's Elezhai Hydropower Station and Stenwodai HydropowerStation and the steel bridge projeet of Oinghai XunhuaHydropower System.
2011Year	The Wenchuan Earth quakeassisted in the construetion of the export of steelbridges to lrag.

2012Year	Henan Zhengzhou FoxconnTraffie Bridge, Sichuan XixiheHydropower Station LhasaBangduo Hydropower StationSteel Bridge Proieet. ete.
2013Year	Angola and OuterMongolia steel bridge export tasks and Xiningand Tianjin steel bridge projects.
2014Year	Philippine exports and the construction of Shangri-LaYunnan in Hotan, Xinjiang 67-meter pipeline bridge inFengxiang，Shanxi,and137-meter steel bridge inYancheng China Railway.
2015Year	Singapore Super Bere Bridge,Nepal,Guatemala.India Patel 180-meter bronze statue construction 225-meter steel bridge and other projects.
2016Year	Congo Golden Steel Bridge Export，Shanghai Baosteel Xinjiang Kanas ForestryBureau,Zhenjiang Wetland Park Steel Bridge Project，Sanya Hongtang Airport 10.000-pile Bere Tablet Project started.
2017Year	Changzhou Longhutang Metro Station Metro Line 2 Beirejia Steel BridgeProjeet in Zhaosu County,Atushi. Hemu County，Xinjiang，Bozhou, Anhui.

2018Year	The Philippines and NepalShangmaxiangdi Hydropower Station，andthe Hidalaya Third Bridge Steel Bridge Project in Bangladesh.
2019Year	Shandong China Railway16 steel bridges in Beitun，Xinjiang，Shihezi pipegallery bridge， Shantousupport，etc.,exported toIndonesia.
2020Year	Sangyuanzi Bridge across theYellow River in Lanzhou.Gansu.Sichuan Road Bridge 200 type deck full-heightshear-resistant Beley Bridge，Xinjiang Horgos steel bridge project, Linzhi, Tibet，ete.
