Compact 321
BAILEY

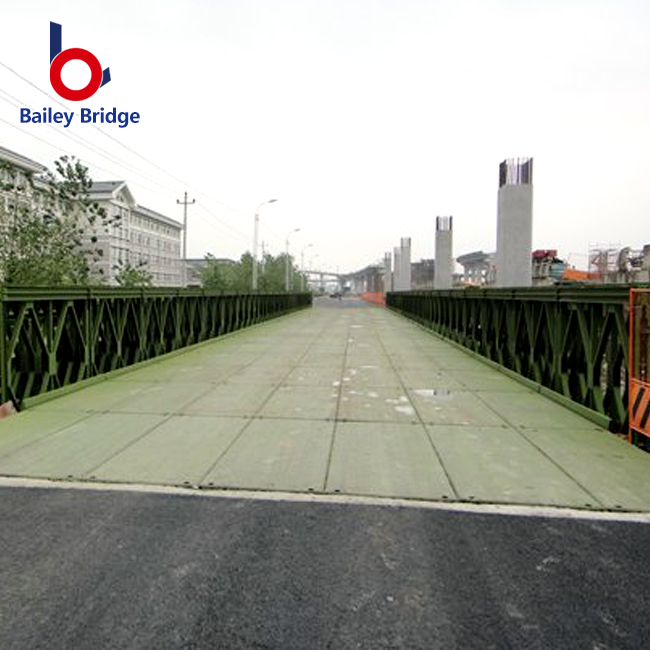

The CB200 Bailey Bridge is a bridge equipment widely used in military and civilian fields, characterized by simple structure, convenient portability, and fast installation speed. Mainly used for quickly erecting temporary bridges in complex terrains such as rivers, lakes, and swamps to ensure the smooth passage of personnel and materials.
The CB200 Bailey Bridge mainly consists of the following parts: the Bailey Bridge is composed of three layers: upper, middle, and lower. The upper layer is the bearing layer, the middle layer is the supporting layer, and the lower layer is the base. The foot of the bridge is the part where the Bailey Bridge comes into contact with the ground and serves to support and stabilize the bridge. Bridge accessories include bridge connectors, fasteners, etc., used to connect the bridge and the bridge foot, ensuring the overall stability of the bridge.
For more information or inquiries, please contact us.
Core Advantages
--------------------------------------▶▶▶--------------------------------------
Careful selection of materials
Rigorous Craftsmanship
Quality Assurance
Integrity management
Technical team
After-sales service
Preparation before construction
--------------------------------------------▶▶▶---------------------------------------------
Environmental assessment
Conduct a detailed environmental assessment before construction, including investigation of surrounding vegetation, water bodies, wildlife habitats, etc., and develop corresponding ecological protection plans.
Reasonable site selection:
Choose the construction site with the least impact on the ecological environment, and avoid construction in ecologically sensitive areas or nature reserves.
Load desiqn of Bailey Steel Bridge
--------------------------------------▶▶▶--------------------------------------
| Type | Type 321 | Bridge Form | 6row,deck-type,single layer |
| Length | 162m | Load | 3.5kN/m2 |
| Net width | 5m | Anticorrosive | Anticorrosive paint |
| Service Life | Semi-permanent steel structure | ||
Product Parameters
--------------------------------------▶▶▶--------------------------------------
162 meter pedestrian landscape bridge in Yangpi Lake Wetland Park, Fuyang District, Hangzhou City, Zhejiang Province
Yangpi Lake Wetland Park, Hangzhou City, Zhejiang Province
Project Vitals:
Location: Yangbeihu Wetland Park, Hangzhou, China
Total Length: 162 meters (531 feet)
Bridge Model: Type 321 Modular Steel Truss
Application: Pedestrian Walkway & Scenic Landscape Bridge
A Fusion of Functional Engineering and Natural Aesthetics: This 162-meter prefabricated footbridge solution was engineered for the picturesque Yangbeihu Wetland Park in Hangzhou. The primary goal was to create a functional crossing that also serves as an elegant landscape feature, integrating seamlessly with the park's tranquil environment.
Key Design & Engineering Features:
Aesthetic Integration with the Landscape: The classic Type 321 Bailey truss structure was finished in a custom deep-green color to harmonize with the park's natural vegetation. The bridge is equipped with a minimalist steel handrail and railing system, finished in the same color scheme. This cohesive design ensures pedestrian safety while allowing the structure to blend elegantly into its scenic surroundings.
Long-Span Modular Footbridge: This 162-meter walkway utilizes a multi-span configuration over permanent concrete piers, demonstrating the scalability of our systems for significant trail crossings. The deck features a durable, anti-slip surface for a safe and comfortable visitor experience.
Eco-Friendly, Low-Impact Installation: Utilizing a prefabricated approach minimized on-site construction time and disruption to the sensitive wetland ecosystem, a critical requirement for this environmentally protected area.
A Versatile Bridge Solution for Public and Recreational Spaces: The Yangbeihu Park project is a prime example of our modular bridge's adaptability for permanent, aesthetically-driven applications. It proves our capability to deliver infrastructure for tourist destinations and urban green spaces that is at once practical, durable, and visually appealing.
