Project Showcase:

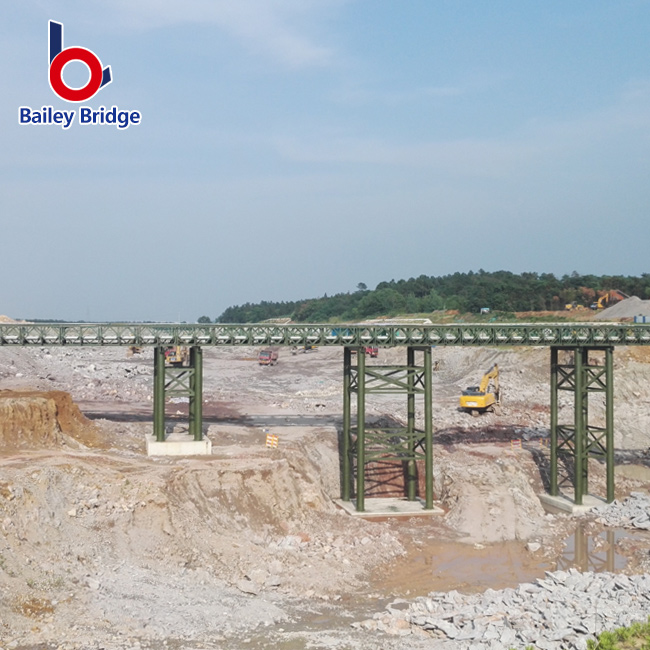

A 108m Turnkey Construction Bridge for the Nanjing Qinhuai River Project

Project Vitals:

Application: Heavy-duty access bridge for a major channel improvement project

Location: Qinhuai River, Nanjing, Jiangsu Province, China

Total Length: 108 meters (354 feet), configured in 5 spans of 21.6m each

Superstructure: Type 321, Double-Row, Single-Layer, Reinforced (DSR)

Substructure: Custom 630mm x 10mm steel pipe piers

A Comprehensive Bridging Solution for Major Civil Works:

This project required a large-scale, semi-permanent access bridge to support a major waterway channel improvement initiative on Nanjing's historic Qinhuai River. The structure needed to facilitate the transport of heavy construction vehicles, equipment, and materials across the wide river channel.

Engineering Highlights & Integrated Design:

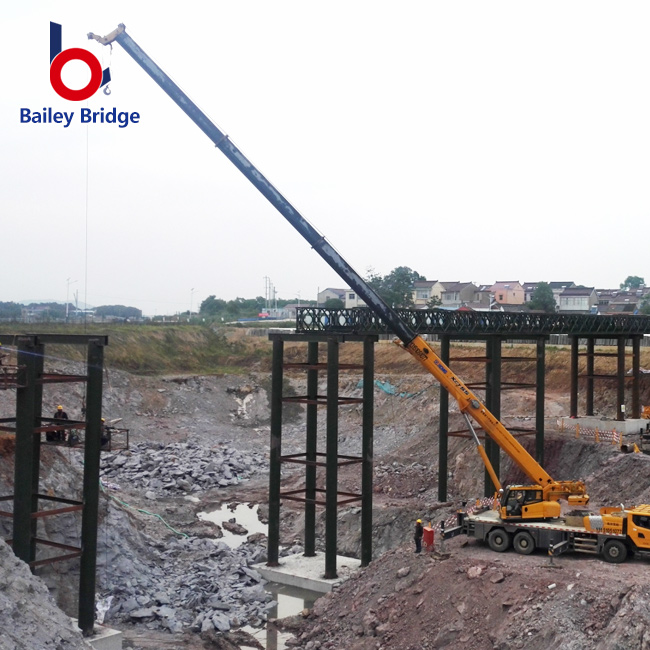

Complete Turnkey System: We delivered a holistic, turnkey solution comprising not only the bridge superstructure but also custom-engineered steel pipe piers. The substructure, built from robust 630mm diameter, 10mm wall thickness steel pipes, provided a stable, rapidly installed, and reusable foundation for the bridge.

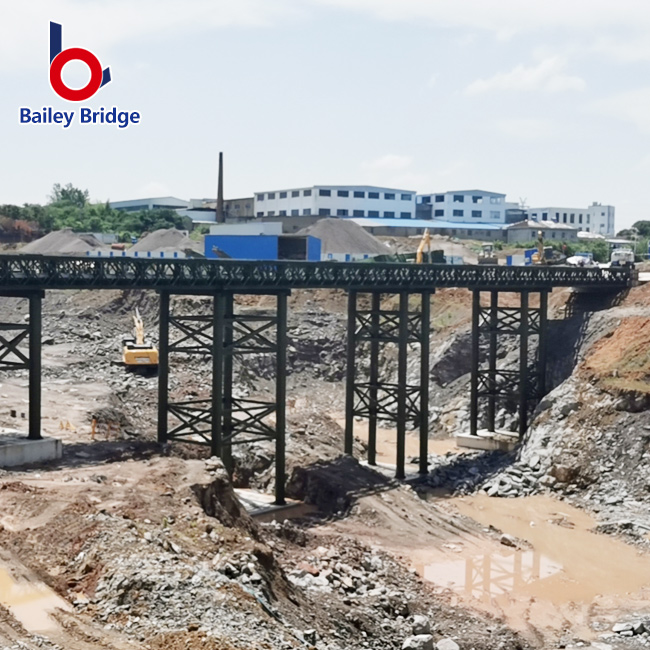

Large-Scale, Multi-Span Crossing:

Achieving a total length of 108 meters, the bridge consists of five uniform 21.6-meter spans, showcasing our capability in executing long-distance temporary or semi-permanent crossings for major civil projects.

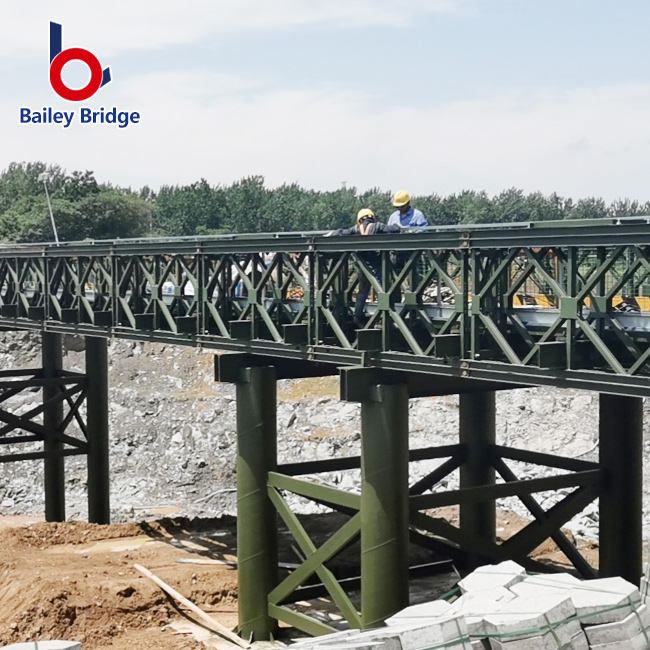

Robust and Reliable Superstructure: The bridge deck utilizes the classic Type 321 Double-Row, Single-Layer, Reinforced (DSR) configuration. This provides a 4-meter-wide clear carriageway rated for a 40-ton load capacity, sufficient for all anticipated construction traffic.

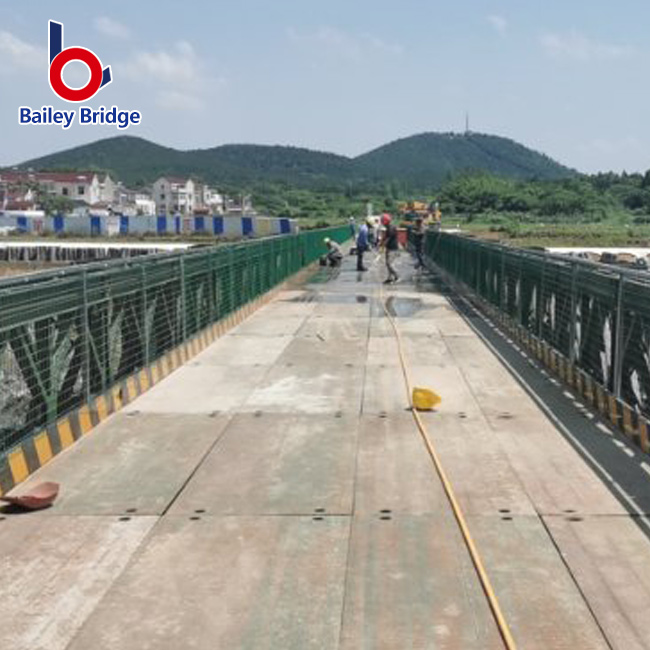

Enhanced Safety Features: To ensure the safety of on-site personnel, the bridge was equipped with integrated pedestrian guardrail netting and safety curbs, making it suitable for mixed vehicle and foot traffic.

A Benchmark for Integrated Construction Bridging: The Qinhuai River project is a prime example of our "one-stop" solution capabilities. By combining our standardized modular bridge systems with custom-designed steel piers, we provide an efficient, economical, and safe infrastructure solution for large-scale civil engineering works, significantly reducing project preparation time.

                                   Our Advantage

                                               --------------------------------------▶▶▶--------------------------------------

                                                            Bridge Parts Display

                                   --------------------------------------▶▶▶--------------------------------------

ZB200 truss press limited table
		structure form
No	internal force	not reinforced model				reinforced model
		SS	DS	TS	QS	SSR	DSR	TSR	QSR
200	standard truss moment(kN.m）	1034.3	2027.2	2978.8	3930.3	2165.4	4244.2	6236.4	8228.6
200	standard truss shear (kN)	222.1	435.3	639.6	843.9	222.1	435.3	639.6	843.9
201	high bending truss moment(kN.m）	1593.2	3122.8	4585.5	6054.3	3335.8	6538.2	9607.1	12676.1
202	high bending truss shear(kN)	348	696	1044	1392	348	696	1044	1392
203	Shear force of super high shear truss(kN)	509.8	999.2	1468.2	1937.2	509.8	999.2	1468.2	1937.2

ZB200 Table of geometric characteristics of truss bridge（Half bridge）
structure	geometric characteristics
	geometric characteristics	chord area(cm2)	Section properties（cm3）	Moment of inertia(cm4)
SS single-row, single-layer	SS single-row,single-layer	25.48	5437	580174
	SSR single-row,single-layer, reinforce	50.96	10875	1160348
DS double-row, single-layer	DS double-row,single-layer	50.96	10875	1160348
	DSR1 double-row,single-layer, reinforced	76.44	16312	1740522
	DSR2 double-row,single-layer, reinforced only on the top	101.92	21750	2320696
TS triple-row, single-layer	TS triple-row,single-layer	76.44	16312	1740522
	TSR2 triple-row,single-layer, reinforced only on the top	127.4	27185	2900870
	TSR3 triple-row,single-layer, reinforced only at the bottom	152.88	32625	3481044
QS quadruple-row, single-layer	QS quadruple-row,single-layer	101.92	21750	2320696
	QSR3 quadruple-row,single-layer, reinforced only on the top	178.36	38059	4061218
	QSR4 quadruple-row,single-layer, reinforced only at the bottom	203.84	43500	4641392
