How to Build a Bailey Bridge: A Comprehensive Guide

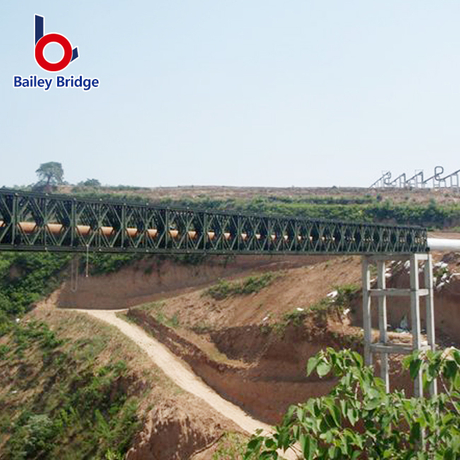

Building a bridge quickly sounds simple until real site risks appear. Ground conditions, loads, alignment, and safety can change every decision. A bailey bridge simplifies assembly through modular steel components. This guide explains planning, construction, launching, inspection, and commissioning. It also highlights common mistakes that project teams should avoid.

Key Takeaways

● A bailey bridge uses prefabricated steel panels and interchangeable components. This structure supports faster assembly, easier transport, and flexible project planning.

● Construction must begin with an accurate site survey. Engineers need span dimensions, ground conditions, traffic loads, water levels, and access information.

● Bridge capacity depends on its approved truss arrangement. Teams must never add panels or reinforcement without updated structural calculations.

● Most bridges are assembled beside the crossing. Rollers and a lightweight launching nose then help move the structure toward the opposite bank.

● Alignment checks are required throughout assembly and launching. Small early errors can cause binding, uneven loading, or damaged connections.

● Qualified engineers must approve foundations, bearings, launching procedures, and load limits. Modular construction does not remove engineering responsibilities.

● Final inspection, load testing, traffic controls, and maintenance planning protect long-term performance. They also support safer handover and operation.



Preconstruction Planning for a Bailey Bridge

Survey the Crossing Site

Every successful bridge project begins with reliable site information. The survey team should measure the clear span, channel width, bank elevations, approach slopes, and available assembly space. They should also record obstacles that could affect transport or launching.

Ground conditions deserve equal attention. Engineers need soil bearing data for foundations, rollers, temporary supports, and assembly areas. They must also examine erosion, drainage, flood levels, and possible bank movement.

Access conditions influence the entire installation plan. Narrow roads may restrict crane use or oversized deliveries. Soft ground may also limit trucks, lifting equipment, and storage areas.

Tip：Complete the site survey before requesting a quotation, because accurate data supports better design and delivery planning.

Define Traffic and Load Requirements

The bridge must match its real operating conditions. Project teams should identify the heaviest expected vehicle, axle arrangement, traffic frequency, roadway width, and required safety margin.

A pedestrian crossing needs a different configuration from a construction access bridge. Heavy machinery, mining trucks, or emergency vehicles create greater structural demands. Braking, vibration, unbalanced loading, and vehicle spacing must also be considered.

The expected service period matters as well. A temporary detour may operate for several months. A rural crossing may remain in service for many years. Longer use often requires stronger corrosion protection, planned inspections, and more durable approach works.

Complete the Engineering Design

The bridge supplier and project engineer use the site data to select a suitable configuration. They consider span length, bridge width, design load, environmental exposure, and local standards.

The approved design package should include:

● General arrangement drawings

● Truss and reinforcement configuration

● Foundation and abutment details

● Bearing positions and elevations

● Component and fastener schedules

● Launching and temporary-work calculations

● Deck, railing, and approach details

● Inspection and testing requirements

The construction team should also receive an installation plan. It should define the work sequence, equipment, lifting points, communication methods, and inspection stages.

Note：A standard modular system still requires project-specific calculations and approved construction drawings.



How to Build a Bailey Bridge

Prepare Foundations and Abutments

Clear and level the work area before bridge components arrive. The assembly bank needs enough straight space for the bridge, launching nose, equipment, and stored materials.

Build the abutments according to the approved foundation design. Their position, height, and bearing surfaces must match the bridge drawings. Poor elevation control can create deck slopes, uneven bearing pressure, or difficult approach connections.

Drainage and erosion protection should be completed early. Water must not collect around foundations or weaken the approaches. River projects may also need bank protection against fast currents and seasonal flooding.

Receive and Inspect Every Component

Check the shipment against the approved packing list. Sort panels, pins, transoms, stringers, bracing, decking, bearings, rollers, fasteners, and launching equipment.

Inspect each part before assembly begins. Look for bent members, damaged coatings, blocked holes, missing clips, distorted pins, or transport damage. Separate rejected components and record any replacements.

Arrange usable parts in installation order. This step reduces handling time and helps supervisors track inventory. It also prevents workers from selecting a similar-looking but incorrect component.

Position Rollers and Build the First Bays

Install the launching rollers on stable, surveyed supports. Their height and centerline must follow the approved launching plan. Misaligned rollers can cause the bridge to drift or bind.

Begin by connecting the first side panels. Install the transoms between both trusses to establish bridge width. Then add the required bracing to hold the first bays square.

The first section controls the alignment of everything behind it. Measure the diagonals, bridge width, panel line, and level before continuing. Correct errors now rather than forcing later components into place.

Assemble the Launching Nose

The launching nose is a lightweight temporary structure attached before the main bridge. It reaches the opposite bank before the heavier bridge body arrives.

Its length and configuration must come from engineering calculations. A nose that is too short may not control the cantilever load. An incorrectly assembled nose may also twist during movement.

Connect its panels, bracing, and joints in the specified sequence. Check straightness and connection security before adding the main bridge behind it.

Extend the Main Bridge Structure

Continue adding modular panels bay by bay. Both side trusses should progress evenly to avoid twisting or uneven temporary loading.

Install transoms, stringers, sway braces, horizontal braces, and reinforcement members at the required stages. Do not postpone essential bracing for convenience. An incomplete structure can become unstable before launching.

Insert panel pins fully and secure every retaining device. Tighten bolted connections according to the installation requirements. Supervisors should inspect each completed bay before the next one begins.

Recheck line, level, width, and squareness throughout assembly. Survey marks can help teams detect gradual movement before it becomes serious.

Launch the Bridge Across the Crossing

Connect the approved pushing or pulling equipment after assembly reaches the required stage. Depending on site conditions, the team may use winches, controlled vehicles, or hydraulic equipment.

Move the structure slowly over the rollers. One supervisor should control all commands. Workers at both sides must use a clear communication system and understand every stop signal.

Monitor the launching nose, rollers, panel joints, bridge alignment, lateral movement, and visible deflection. Stop immediately when the bridge drifts, binds, settles, or behaves differently from the approved plan.

Once the nose reaches the opposite bank, continue the controlled movement. The main bridge should advance until it reaches its final position above the bearings.

Lower and Secure the Bridge

Remove the launching nose according to the approved sequence. Use suitable jacks to lift or lower the bridge from temporary rollers onto permanent bearings.

Jacking points must match the engineering plan. Uneven lifting can overload panels, twist the structure, or damage bearings. Each movement should remain small and controlled.

After landing, confirm full bearing contact and correct bridge alignment. Install anchors, restraints, final bracing, and other permanent connections. Remove temporary supports only after approval.

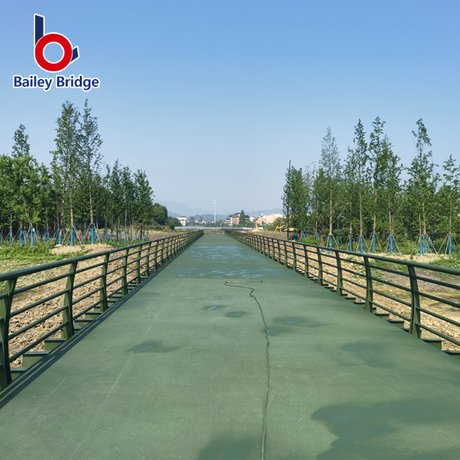

Install the Deck and Approaches

Complete the deck system after the main structure is secure. Install the specified deck plates, anti-skid surface, curbs, guardrails, and pedestrian protection.

Check every deck connection. Loose panels can create noise, movement, wear, and traffic hazards. The finished surface should remain level and provide safe tire grip.

Build smooth approach transitions at both bridge ends. Sudden height changes can create vehicle impact loads. They may also damage the deck, bearings, and approach structure.

The complete construction sequence can be summarized below:



Bailey Bridge Components and Their Roles

Panels, Pins, and Reinforcement Members

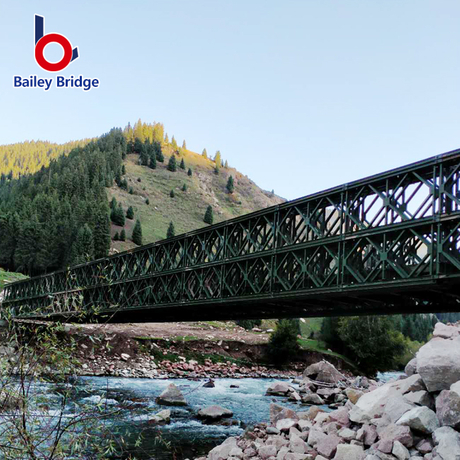

Steel panels form the main side trusses. Their triangular structure transfers loads toward the supports. Standardized panel dimensions allow teams to assemble, extend, dismantle, or reconfigure the bridge.

Panel pins connect adjacent sections. They support fast site assembly because workers avoid extensive field welding. However, pins must fit correctly and include all required retaining devices.

Additional panel rows, upper levels, or reinforcement chords may increase capacity. Engineers select these arrangements according to span and load requirements. Site teams must follow the approved configuration exactly.

Transoms, Stringers, and Bracing

Transoms connect the two side trusses. They maintain bridge width and transfer deck loads toward the main panels.

Stringers run along the bridge and support the roadway deck. Their spacing and connection points must follow the design drawings.

Sway braces and horizontal braces control lateral movement. They also help maintain geometry during assembly, launching, and operation. Missing braces can reduce stability even when the main panels appear complete.

Decking, Bearings, and Launching Equipment

The deck carries vehicle or pedestrian traffic. It may use steel panels and a suitable anti-skid finish. Guardrails, curbs, and approach transitions complete the traffic surface.

Bearings transfer bridge loads into the abutments. Correct placement allows the structure to behave as designed. Uneven bearing contact can create unwanted stress.

Rollers, jacks, winches, and the launching nose support installation. They are temporary tools, yet their capacity is essential. Each item must suit the bridge weight and construction method.



Safety and Quality Control

Manage Worksite Hazards

Create exclusion zones around suspended panels, rollers, winches, jacks, and moving bridge sections. Only assigned workers should enter these areas.

Crew members need suitable protective equipment and task training. Working near water or elevated bridge sections may require fall protection and rescue planning.

Weather conditions must remain within approved limits. High winds, heavy rain, flooding, or poor visibility can make launching unsafe.

Inspect Connections During Assembly

Quality control should happen throughout construction, not only at completion. Inspect the first bays, launching nose, reinforcement, completed truss, final bearings, and deck system.

Confirm that all pins are fully inserted. Check bolts, clips, braces, deck fasteners, and bearing restraints. Record each inspection through signed checklists and photographs.

Tip：Use inspection hold points so hidden errors are corrected before the next construction stage begins.

Control the Launching Operation

Launching requires one command system. Conflicting instructions can cause sudden movement and equipment overload.

Workers should monitor roller settlement, bridge drift, winch tension, and structural response. Stop the process whenever measurements exceed the approved limits.

Never force a bridge past resistance. Binding usually signals alignment, roller, or support problems. Find the cause before movement resumes.



Common Bailey Bridge Construction Problems

Components Do Not Align

Connection holes may not align when earlier bays are out of square. Uneven rollers or incorrect panel orientation can create similar problems.

Do not hammer pins through severe misalignment. Recheck diagonals, bridge width, panel direction, and support levels. Correct the geometry before continuing.

The Bridge Drifts During Launching

Lateral drift often begins with roller misalignment or unequal pulling forces. Soft ground beneath one roller may also change the bridge direction.

Stop launching and survey the centerline. Check every roller and temporary support. Resume only after the cause has been corrected.

Foundations or Bearings Settle

Settlement may appear as deck movement, uneven bearing contact, or changing approach levels. Water erosion and weak soil are common causes.

Close the affected area when settlement threatens safety. An engineer should assess foundations, drainage, and bearing seats. Temporary packing should never replace a designed repair.

Parts Are Missing or Damaged

Poor inventory control can stop assembly at a critical stage. It may also encourage workers to use incorrect replacements.

Count and inspect components before work starts. Keep spare fasteners and other approved parts available. Damaged structural members require supplier or engineer approval before reuse.



Conclusion

A successful bridge build starts with accurate site data and approved engineering. Teams must inspect components, control alignment, launch carefully, and test every connection. Bailey Steel Bridge provides modular galvanized steel bridge systems, customized design support, drawings, installation guidance, and global delivery. Its interchangeable components support rapid construction, flexible capacity, reuse, and dependable service across demanding projects.



FAQS

Q: What is a bailey bridge?

A: A bailey bridge is a modular, prefabricated steel truss crossing.

Q: How is a bailey bridge launched?

A: The bailey bridge moves across rollers behind a lightweight launching nose.

Q: Can a bailey bridge carry trucks?

A: Yes. A bailey bridge needs an approved heavy-load configuration.

Q: Why do bridge panels misalign?

A: Uneven supports, incorrect orientation, or early geometry errors cause misalignment.

Q: How much does construction cost?

A: Cost depends on span, load, width, foundations, transport, and installation.

Q: Is it cheaper than conventional construction?

A: It may reduce labor, crane use, downtime, and future replacement costs.
