Views: 294 Author: Site Editor Publish Time: 2026-04-10 Origin: Site
Infrastructure gaps happen. Whether it is a natural disaster washing out a rural crossing or a construction project requiring a heavy-duty bypass, the need for reliable, temporary bridge solutions is constant. Enter the Portable Bailey Bridge. This engineering marvel has evolved from a wartime necessity into the gold standard for Emergency and Prefabricated bridging worldwide.
In this guide, we dive deep into why this Modular system remains the go-to choice for engineers. We will explore its technical design, the speed of its Rapid deployment, and how it solves complex logistical challenges in remote areas. If you are looking for a solution that balances strength with portability, you are in the right place.

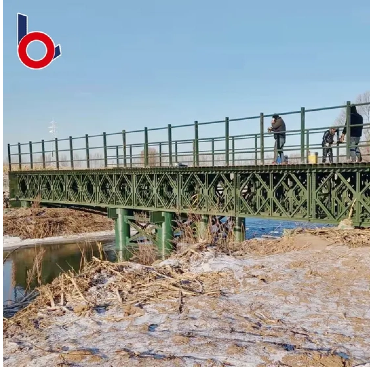

The Portable Bailey Bridge is not just a piece of metal; it is a sophisticated Modular system designed for extreme adaptability. Its core strength lies in its simplicity. Originally designed by Donald Bailey, the system uses standardized components that workers can assemble without heavy machinery in many cases.
Each Portable Bailey Bridge consists of three main parts: the panels, the transoms, and the stringers. These Prefabricated components fit together like a massive structural puzzle. Because they are Modular, you can scale the bridge’s capacity by adding more panels (doubling or tripling them) to support heavier loads.
Panels: These are the vertical trusses that provide the primary longitudinal strength.
Transoms: Horizontal beams that connect the panels and support the roadway.
Stringers: Secondary beams that sit atop transoms to hold the decking.
Traditional bridge building takes months or years. A Portable Bailey Bridge cuts that timeline down to days. This is crucial for Emergency response where every hour matters. They are also Galvanized to resist rust, making them ideal for long-term temporary use in humid or coastal environments. We see these used frequently in mining, logging, and disaster relief because they handle heavy equipment with ease.
Feature | Description |
|---|---|
Component Weight | Lightweight enough for manual handling (panels approx. 260kg). |
Material | High-tensile structural steel, usually Galvanized. |
Assembly Method | Pin-jointed system; no welding required on-site. |
Load Capacity | Customizable from light vehicles to 60-ton tanks (Military grade). |
When we talk about a Portable Bailey Bridge, the "portable" part is not an exaggeration. The entire system is designed for Rapid deployment. You can transport these components in standard trucks and assemble them in areas where large cranes cannot reach.
One of the most impressive feats of the Portable Bailey Bridge is the "launching" process. We use a "launching nose"—an un-decked section of the bridge that extends across the gap first.
Assembly on Shore: Workers build the bridge on rollers on one side of the river.
The Push: Using a winch or a simple truck, they push the bridge across the gap.
Removal of the Nose: Once it reaches the other side, the nose is dismantled, and the bridge is jacked down onto its bearings.
This method is vital for Emergency scenarios where you cannot get equipment to the far side of the bank. It turns an impossible crossing into a functional path in a single afternoon.
While the bridge is flexible, the foundation must be solid.
Abutments: You need stable ground. This can be reinforced concrete or even timber cribbing for shorter spans.
Approach Paths: Ensure the ground leading to the bridge can handle the weight of the vehicles that will use it.
Leveling: The rollers must be perfectly aligned. If they are off by even a few degrees, the Portable Bailey Bridge might drift during the launch.
We always recommend a site survey. Even though it is a temporary bridge solution, the physics of load-bearing remain the same as a permanent structure.
A common question we hear is: "How much can a Portable Bailey Bridge actually hold?" The answer is: as much as you need it to. Because it is a Modular system, the configuration determines the strength.
We categorize these bridges based on how many panels are used.
Single-Single (SS): One row of panels on each side. Good for short spans and light traffic.
Double-Single (DS): Two rows of panels on each side. This significantly increases the weight capacity.
Triple-Double (TD): Three rows of panels across two stories. This is the Military powerhouse configuration, capable of spanning 60+ meters while carrying heavy freight.
Note: Data requires validation based on specific manufacturer standards.
Span Length (m) | Configuration | Typical Load Rating |
|---|---|---|
9 - 15 | Single-Single | 10 - 20 Tons |
18 - 30 | Double-Single | 30 - 40 Tons |
33 - 50 | Triple-Double | 50 - 80 Tons |
Most Portable Bailey Bridge units are Galvanized. This involves coating the steel in zinc. Why? Because these bridges often sit in mud, rain, or salt air. A Galvanized finish ensures the structural integrity doesn't degrade over five or ten years of service. It reduces maintenance costs and ensures the components remain "hot-swappable" for decades.
While the Portable Bailey Bridge has its roots in Military history, its civilian applications have surpassed its original intent. Understanding these differences helps in selecting the right Prefabricated bridge for your specific project.
In a combat or peacekeeping environment, the Portable Bailey Bridge is about stealth and speed.
Rapid deployment: Engineered to be built under fire or at night.
Heavy Armor: Designed to support the weight of main battle tanks.
Standardization: Every army in the world uses similar specs, allowing for international cooperation during disasters.
In the private sector, the focus shifts to cost-effectiveness and longevity.
Construction Bypass: Used during the repair of permanent bridges to keep traffic moving.
Resource Extraction: Mining companies use them to move ore over ravines.
Remote Access: Communities cut off by floods use these as Emergency lifelines.
Feature | Military Focus | Civilian Focus |
|---|---|---|
Assembly Speed | Maximum Priority | Balanced with Safety Regs |
Aesthetics | Irrelevant (Olive/Grey) | Can be painted or modified |
Decking | Steel or Timber for grip | Asphalt-ready or Steel plate |
Usage Duration | Hours to Months | Months to Decades |
We see that the Portable Bailey Bridge acts as a bridge between high-stakes engineering and practical, everyday utility.
Investing in a Portable Bailey Bridge is a financial decision that often pays for itself through time savings. When a road is closed, the economic loss per day can be staggering.
Because the system is Prefabricated, you do not need a team of specialized welders or master masons. A standard construction crew, guided by a supervisor who knows the Modular system, can handle the assembly. This significantly lowers the "soft costs" of a project.
Unlike a concrete bridge, a Portable Bailey Bridge is an asset you can use again. Once your project is done, you dismantle it, stack the panels, and move them to the next site. Many organizations buy a "kit" and keep it in storage for Emergency needs.
Building a permanent bridge involves heavy excavation and often pouring concrete into waterways. A Portable Bailey Bridge has a much smaller footprint. Since it is a temporary bridge solution, it can be removed without leaving a trace, which is a major win for environmental compliance in sensitive areas.
No heavy foundations required for light spans.
No chemical runoff from on-site welding or painting.
100% Recyclable steel components.
Just because a Portable Bailey Bridge is temporary doesn't mean safety can be ignored. Proper maintenance ensures that the Rapid deployment doesn't lead to rapid failure.
If the bridge is in a high-traffic area, we recommend monthly inspections.
Pin Checks: Ensure the connecting pins are fully seated and the safety clips are intact.
Corrosion Monitoring: Even if Galvanized, scratches can lead to rust. Touch up these areas immediately.
Tightening Transoms: Vibration from trucks can loosen the bolts that hold the transoms to the panels.
Overloading is the biggest threat to any Portable Bailey Bridge.
Signage: Clearly post weight limits at both ends.
Speed Control: Force vehicles to slow down. High-speed impacts create dynamic loads that can exceed the static load rating of the bridge.
Spacing: If the bridge is long, ensure only one heavy vehicle is on it at a time.
In areas prone to flooding, we must monitor the water level. A Portable Bailey Bridge is heavy, but it can be moved by extreme debris or high-velocity water if it hits the side of the panels. Always ensure the bridge is set high enough above the "100-year flood" line if it will be in place for a long duration.
When looking for temporary bridge solutions, you might consider other options like Mabey bridges or custom-built timber structures. However, the Portable Bailey Bridge usually comes out on top for several reasons.
Timber is cheap but weak. It rots. It catches fire. A Portable Bailey Bridge offers a predictable strength-to-weight ratio that timber simply cannot match. It is also much faster to assemble than a custom-built wooden truss.
Simple steel I-beams are great for very short spans, but they become incredibly heavy as the span increases. They require massive cranes for installation. The Modular nature of the Bailey system allows you to build long spans using small, manageable pieces.
Weight: Lighter than solid beams.
Flexibility: Can be widened or strengthened after installation.
Global Support: Parts are standardized, so finding replacements is easy.
To truly understand the value, we have to look at how these bridges solve real-world problems.
After a major earthquake in a mountainous region, the primary supply road was severed by a massive landslide. A Military engineering team arrived with a Portable Bailey Bridge kit. Within 36 hours, they had launched a 40-meter Double-Single bridge. This allowed food and medical supplies to reach 10,000 people who were previously cut off. This is the definition of Emergency utility.
A mining operation in South America needed to transport heavy machinery across a deep gorge. Building a permanent road would have taken 18 months. Instead, they purchased a Galvanized Portable Bailey Bridge. They assembled it on-site in two weeks. The bridge carried 50-ton loads daily for three years until the mine was exhausted. They then dismantled the bridge and sold the components to a local municipality.
In a busy city, a 50-year-old bridge needed a total deck replacement. To avoid a two-year traffic nightmare, the city installed two Portable Bailey Bridge units side-by-side as a temporary bypass. Traffic flow remained at 80% capacity, saving the local economy millions in lost productivity.
The Portable Bailey Bridge has proven itself over nearly a century of service. Its evolution into a Prefabricated, Galvanized, and highly Modular system makes it more relevant today than ever. As climate change leads to more frequent extreme weather events, the need for Emergency infrastructure will only grow.
Choosing a Portable Bailey Bridge means choosing reliability. It means knowing that you have a temporary bridge solution that can be deployed rapidly, withstand heavy loads, and be reused for decades. It is the ultimate insurance policy for road networks and industrial projects alike.
While designed for temporary use, many Galvanized units have been in service for 30+ years. If the foundations are solid and the steel is maintained, they can function as permanent structures, especially in rural areas.
Without intermediate piers, a Portable Bailey Bridge can typically span up to 60-70 meters in a Triple-Double configuration. With piers, the length is theoretically unlimited.
A small team of 10 to 12 people can assemble a standard span manually. With a small crane or forklift, a crew of 5 or 6 can do the job even faster.
Most modern Portable Bailey Bridge systems use checkered steel plate or an anti-skid epoxy coating. For Military use, simple timber planks are sometimes used, but these require more maintenance.
