What Makes a Bridge a Trestle?Trestle bridges are often overlooked in the world of modern infrastructure, but they have a rich history. Have you ever wondered why some bridges are built with short spans and repetitive supports? A trestle bridge is a unique structure that offers both adaptability and durability, even in challenging terrains. In this post, we’ll explore the key features of a trestle bridge, from its modular design to the materials that make it strong. You'll learn how these bridges have evolved and why they remain relevant today.

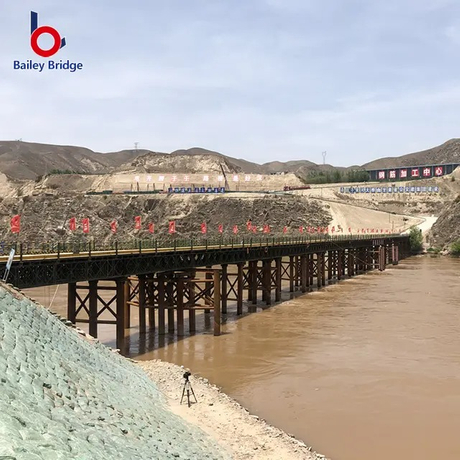

Trestle Structure:A trestle bridge is made up of short spans that are supported by a series of bents. These spans are relatively short compared to other bridges like suspension bridges. The key feature of a trestle is the repeating support units that are modular and easy to assemble.
Bents:Bents are the critical vertical supports in a trestle bridge. They are typically made of timber, steel, or concrete and are designed to carry the loads from the deck down to the foundation. Bents transfer the weight through vertical frames or posts, ensuring stability and strength. The spacing of these bents is often around 8 to 15 feet.
Modular Design:One of the standout features of a trestle bridge is its modular design. This means that the bridge is made up of several similar units, which can be assembled or replaced easily. This modularity allows for fast construction and adaptation to different environments, from temporary structures to permanent installations.
Materials Used:Trestles have evolved from wooden structures to include steel and concrete. Early trestles were primarily made from timber, as it was readily available and cost-effective. However, modern trestles use steel or concrete for their enhanced strength and durability. Steel offers better resistance to weather and load stresses, while concrete provides low maintenance and longevity.
Trestle bridges stand out from other bridge types due to their unique design and application. Unlike arch, suspension, and beam bridges, which are built for longer spans, trestles are typically used for shorter, more flexible spans supported by a series of bents.
Functionality: Trestle bridges are ideal for specific environments, such as crossing wetlands, ravines, or flood-prone areas. Their open, modular design allows water and air to pass through, preventing erosion and reducing environmental impact. This makes them a great option for locations where other bridge types might struggle to withstand harsh conditions.
Design Simplicity: Trestles simplify construction thanks to their modular design. The repeated use of bents and short spans allows for fast assembly, making trestles more cost-effective and easier to build, even in challenging terrains. Compared to complex arch or suspension bridges, trestles are easier to adapt to different environments and project needs.
Trestle bridges have undergone a significant transformation in materials, from early wooden structures to the use of modern steel and concrete. The evolution of materials has greatly impacted the strength, durability, and maintenance of these bridges, allowing them to endure harsh conditions and support heavier loads.
Early Wooden Trestles vs. Modern Metal and Concrete Trestles
In the past, wooden trestles were the go-to material due to availability and cost. These structures were quick to build and ideal for temporary setups, particularly for railroads. However, they had a limited lifespan and required frequent maintenance. In contrast, modern trestles are built using stronger materials like metal and concrete, which provide enhanced durability and resistance to environmental factors.
The Impact of Material Advancements on Strength and Durability
As materials evolved, so did the strength of trestle bridges. Steel and iron brought greater load-bearing capabilities, while concrete added low-maintenance durability. These advancements have allowed trestles to span longer distances and carry heavier loads, making them more viable for permanent applications in challenging environments.
Iron & Steel:
The introduction of iron and steel marked a major leap forward in the construction of trestle bridges. These materials are stronger and more durable than wood, enabling the construction of bridges with longer spans. Steel also offers better resistance to weather and wear, reducing the need for frequent repairs.
Prestressed Concrete:
Prestressed concrete has revolutionized trestle bridge design. This material is incredibly durable, low-maintenance, and ideal for permanent installations. Prestressed concrete allows for longer spans and can withstand more weight, making it an excellent choice for trestles used in industrial and transportation infrastructure.
Bents are crucial to the structure of a trestle bridge. They serve as the primary vertical support, transferring the weight of the bridge deck down to the foundation. Without bents, a trestle would not be able to bear the load it supports. Bents act as rigid frames, often made of timber, steel, or concrete. They form the backbone of the bridge, providing stability and strength to carry both static and dynamic loads from the deck. The spacing and material choice of bents significantly impact the bridge’s performance. The materials used for constructing bents vary. Early trestles often used timber due to its availability, but modern trestles incorporate steel and concrete for their strength and durability. Timber bents are typically used in low-traffic areas, while steel and concrete are chosen for their ability to handle heavier loads and last longer in harsh environments.
Bracing systems are vital for maintaining the stability of a trestle bridge under lateral forces, such as wind or seismic activity. These systems ensure that the bridge remains upright and doesn’t sway or collapse under pressure.
Diagonal Sway Bracing
Diagonal sway bracing is installed at roughly 45° angles between posts, stabilizing the structure against side-to-side motion. This bracing helps resist wind forces and other lateral pressures. Typically, one diagonal pair is used for every three bays, sized to carry at least 1.5 times the design wind force.
Horizontal Sash Bracing
Horizontal sash bracing prevents the posts from buckling inward or outward. Placed at mid-height between posts, this bracing adds extra stability and ensures that the structure can handle compressive forces without bending. It’s essential for preventing deformation under heavy loads.
Bracing Patterns
Symmetry in bracing patterns is critical. Consistent layouts on both sides of the trestle avoid torsional effects, ensuring the bridge remains balanced. In areas with high seismic risk, additional bracing methods, like K-bracing, may be employed to strengthen the structure further.
The foundation of a trestle bridge is responsible for supporting the entire structure. It ensures that the load from the deck is safely transferred to the ground below, preventing the bridge from sinking or shifting.
Timber Mud Sills and Spread Footings
Timber mud sills are placed atop driven piles in low-bearing soils. This foundation method is ideal for soft, unstable ground. Spread footings, which are concrete pads, are used where soil conditions are stronger, distributing the load over a larger area.
Deep Foundations
Deep foundations, such as steel or concrete piles, are used when the bearing strata lie deep beneath the surface. These foundations offer greater strength, allowing the bridge to stand stable even in challenging terrains or high-water conditions.
Geotechnical Considerations
The design of the foundation is influenced by the site's soil type and conditions. Engineers must perform a geotechnical investigation to determine the soil's bearing capacity, groundwater level, and potential for scour. These factors ensure the foundation is designed to withstand both natural forces and long-term wear.
Timber has been a traditional material for trestle bridges, valued for its availability, ease of use, and cost-effectiveness. When selecting timber for trestles, it’s important to choose species with high strength and durability.
The Role of Wood, such as Western Hemlock and Douglas Fir
Species like Western Hemlock and Douglas Fir are often used for trestle construction due to their high stiffness and strength-to-weight ratio. These woods can support heavy loads and resist the pressures placed on a trestle bridge.
How Heat Treatment Affects Timber Strength
Heat treatment enhances the strength of timber by removing moisture, which increases its stability and resistance to decay. This process also helps the timber become more durable in harsh environments, though it can slightly reduce the material's flexibility.
Thermally Modified Timber
Thermally modified timber offers increased durability, especially in environments prone to moisture and pests. This type of timber is heat-treated to improve its resistance to rot and extend its lifespan. However, the trade-off is a reduction in fracture toughness, which can affect its performance under certain stresses.
While timber is still used in some trestles, steel and concrete have become the preferred materials for modern, heavy-duty trestles. These materials allow for longer spans and increased load-bearing capacity, making them ideal for large-scale and permanent installations.
Why Steel and Concrete are Preferred for Larger Spans and Heavier Loads
Steel provides high strength while maintaining flexibility, making it suitable for longer spans and heavy loads. Concrete, especially prestressed concrete, is highly durable and can withstand significant stress, making it perfect for large trestles that require minimal maintenance over time.
The Importance of Corrosion Resistance in Steel and Durability in Concrete
Steel's resistance to corrosion is a crucial factor in its longevity, especially when used in environments prone to moisture. Concrete offers excellent resistance to weathering, and when properly mixed, it has exceptional durability, ensuring long-lasting performance in the face of extreme conditions.

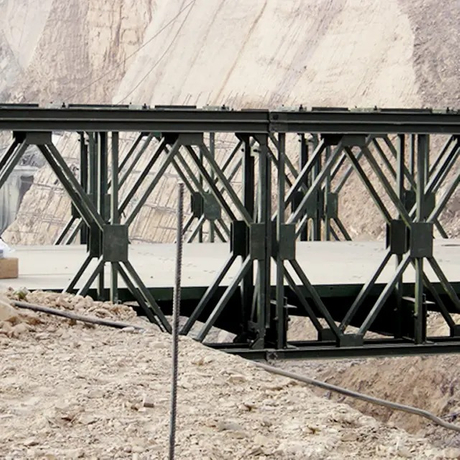

Steel Trusses
Steel trusses are commonly used in trestles to distribute the load evenly across the structure. The trusses provide additional stability, ensuring the bridge can bear the weight of vehicles or trains without shifting or collapsing. Their design helps minimize material usage while maximizing strength.
Environmental concerns have become more important in recent years when selecting materials for trestle bridges. Choosing the right materials and treatments not only impacts the bridge’s durability but also its environmental footprint.
Protective Treatments for Wood Used in Trestle Construction
Timber used in trestles often requires protective treatments to prevent decay, rot, and insect damage. Common treatments include pressure-treated wood, which is infused with preservatives to resist fungi and pests. These treatments help extend the lifespan of wooden trestles in wet or humid environments.
Sustainability and the Environmental Impact of Different Materials
Sustainability is a key consideration in material selection. Timber is renewable, but its harvesting can lead to deforestation if not done responsibly. Steel and concrete, though durable, have a larger environmental impact in terms of manufacturing and energy consumption. Choosing recycled materials or incorporating sustainable sourcing practices can help mitigate these impacts.
Certification and Safety
Using certified materials ensures the safety and reliability of the bridge. For example, AWPA-certified wood guarantees the timber has been treated according to environmental and safety standards. Steel materials that comply with AISC specifications ensure they meet necessary strength and durability criteria for heavy-duty trestles.
Designing a trestle bridge involves several key stages to ensure safety, strength, and durability. Engineers follow a structured process to create the blueprint of the bridge, starting with understanding the site conditions and requirements.
How Engineers Design a Trestle Bridge from Start to Finish
Engineers begin by analyzing the terrain, environmental factors, and the intended load capacity. From there, they design the structure using specialized software to ensure the bridge can handle dynamic loads, such as vehicles or trains. The bridge is then optimized for cost, construction time, and material efficiency.
Design Standards such as AASHTO Specifications
The design must adhere to industry standards, such as those outlined by the American Association of State Highway and Transportation Officials (AASHTO). These standards define safety factors, load capacities, and material specifications to ensure the bridge’s performance in various conditions.
Load Combinations
Engineers must consider multiple forces during the design phase. This includes dead loads (the weight of the bridge structure itself), live loads (the weight of traffic or trains), wind loads, and seismic forces. By evaluating these combinations, engineers can ensure the bridge will perform safely under any condition.

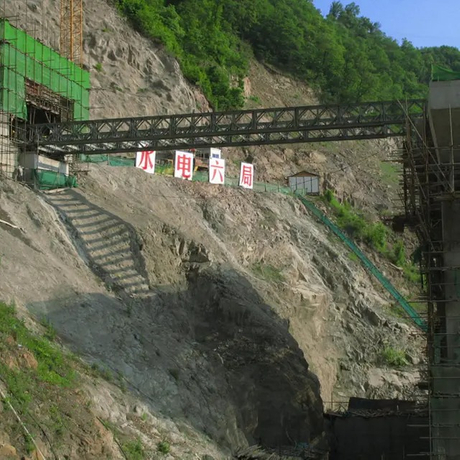

Prefabrication has become a common approach in the construction of trestle bridges, offering several advantages that improve efficiency and reduce costs.
The Modular Approach
Components like bents, deck panels, and bracing systems are often pre-fabricated off-site. This modular approach allows workers to focus on assembly at the construction site rather than building each part from scratch.
Benefits of Using Prefabricated Parts
Prefabrication speeds up the construction process, reduces labor costs, and minimizes delays due to weather or other site-specific challenges. It also improves the overall quality of the components, as they are manufactured in controlled environments.
Modular Construction
By using pre-made components, such as bents and deck panels, the construction time for trestles is significantly reduced. This method simplifies the overall process, ensuring quicker installation and reducing the risk of errors during assembly.
Ensuring safety and quality throughout the construction process is crucial to the longevity and stability of the trestle bridge.
Ensuring Materials Meet Design Specifications
During construction, it’s vital to ensure that all materials meet the specified standards. This includes confirming the quality and dimensions of timber, steel, or concrete before they are used in the bridge structure. Using substandard materials can compromise the bridge’s safety and performance.
Inspection Protocols
Regular inspections are performed to check the alignment, structural integrity, and safety features of the bridge. These inspections ensure that each component is correctly placed and all connections are secure.
QA/QC Programs
Quality Assurance (QA) and Quality Control (QC) programs are essential for maintaining high standards in construction. These programs involve rigorous testing and checks at each stage, from the manufacturing of prefabricated components to the final assembly of the bridge. They help ensure the bridge is built according to plan and is safe for use.
Trestle bridges are unique structures characterized by short spans supported by bents. They remain essential in modern infrastructure due to their adaptability and cost-effectiveness. The evolution of materials, from timber to steel and concrete, has enhanced their strength and longevity. Advanced construction techniques continue to improve trestles, ensuring they remain reliable and efficient for various applications.
A: Trestle bridges are cost-effective, adaptable, and can be quickly constructed. They are ideal for crossing challenging terrains and flood-prone areas.
A: Trestles use short spans supported by bents, while standard bridges often use longer spans and different support structures like arches or suspension cables.
A: No, trestles are also used in highways, pedestrian bridges, and other infrastructure projects, especially in difficult-to-reach areas.
A: The lifespan varies, but modern trestles made from steel or concrete can last for several decades with minimal maintenance.
A: Yes, trestle bridges are designed with bracing systems that help stabilize them against lateral forces like wind and seismic activity.
