Bailey bridges are a marvel of wartime engineering turned modern infrastructure solution. Their modular design, adaptability, and load-carrying capacity make them an essential component in military and civilian bridge-building scenarios. A frequent and critical question engineers, construction managers, and decision-makers face is: What is the maximum span for a Bailey bridge? This article explores the answer in depth, while also analyzing the design principles, factors affecting span length, and practical applications that shape the performance of Bailey bridges.

Understanding the Bailey Bridge Concept

A Bailey bridge is a type of portable, pre-fabricated, truss bridge. Originally designed during World War II by British engineer Donald Bailey, this structure was intended for rapid assembly without the need for specialized equipment. Over time, the design evolved into various configurations, including single-span, multi-span, and cantilever types, to meet varying geographic and logistic demands.

The genius of the Bailey bridge lies in its modular panel system, which enables scalability. Panels are pinned together to increase strength and length, making the bridge suitable for a wide range of span lengths, from short crossings over drainage channels to longer spans across rivers and ravines.

Today, Bailey bridges are still widely used around the world, especially in emergency relief, military logistics, and rural infrastructure development.

Theoretical vs Practical Maximum Span

What’s the Longest You Can Stretch a Bailey Bridge?

In theory, the maximum span of a Bailey bridge can exceed 60 meters (approximately 200 feet) for a single-span setup. However, the actual maximum span achievable depends on several variables including:

• Load classification (e.g., pedestrian, vehicular, military tank)

• Truss configuration (single-single, double-single, double-double, etc.)

• Material strength and deck type

• Environmental conditions such as wind load, temperature variations, and seismic activity

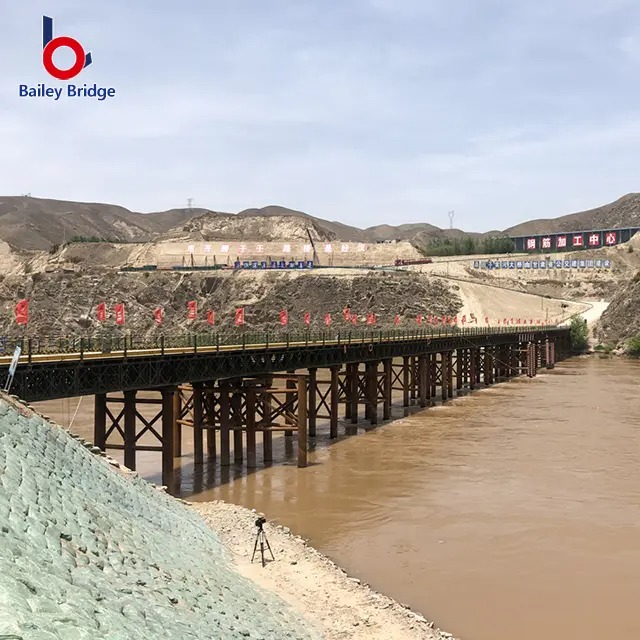

Practically, most civil engineering applications limit Bailey bridge spans to around 45 to 60 meters for single-span systems. Anything beyond that typically involves a multi-span approach, which incorporates intermediate piers or supports to distribute load and increase total bridge length.

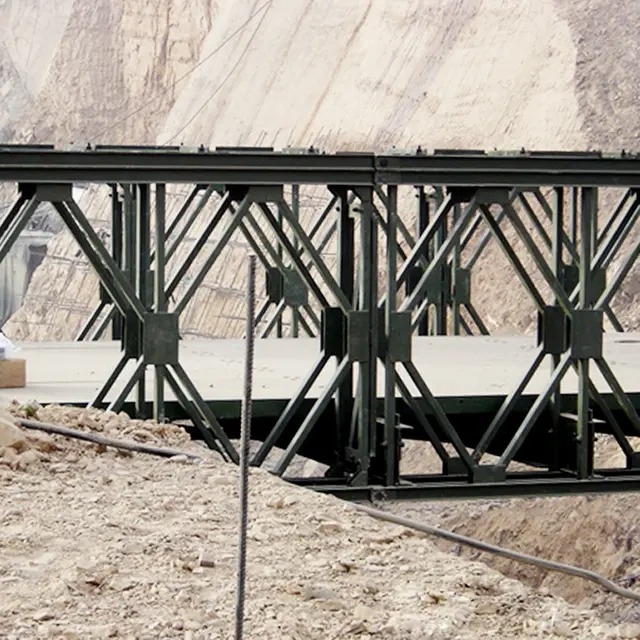

For instance, using a double-double configuration (two trusses high and two trusses wide), the bridge's structural integrity increases dramatically, making spans of up to 61 meters feasible under controlled loading conditions.

Structural Configurations and Their Effect on Span

The different panel combinations and reinforcements significantly influence the maximum span. Below is a summary table showing typical span capabilities for standard Bailey bridge configurations:

Configuration	Maximum Span (m)	Recommended Load Capacity
Single-Single	30 – 36	Light vehicles, foot traffic
Double-Single	36 – 45	Medium-duty trucks
Double-Double	45 – 61	Heavy vehicles, light tanks
Triple-Single	50 – 60+	Military or emergency heavy-load

Note: These figures represent general guidelines and may vary depending on materials, deck type, and site-specific design.

The higher and wider the truss, the more load it can carry—and the farther it can span. For longer spans, engineers may opt for reinforced bottom chords, transom bracing, or even launching nose assemblies to enhance performance.

Factors Affecting the Span of a Bailey Bridge

Several interdependent factors determine how far a Bailey bridge can span without support. These include:

Load Classification and Purpose

Is the bridge intended for pedestrian use, or must it support military-grade tanks and supply trucks? The heavier the anticipated load, the shorter the permissible span unless reinforcements are added.

Site Conditions

Geotechnical data influences foundation design, which in turn affects how much load the bridge can safely distribute. For instance, soft soils may not support the necessary piers for longer spans, requiring design adjustments.

Assembly and Maintenance Considerations

A longer span typically requires more panels, which increases assembly complexity and maintenance responsibility. This can pose challenges in remote or emergency deployment situations, which is why modularity becomes a key asset of the Bailey system.

Use Cases: When Maximum Span Matters

The ability to span long distances without intermediate supports makes Bailey bridges ideal for a range of critical scenarios:

Military Applications

Bailey bridges can be launched rapidly across rivers, gorges, or broken roads under combat or emergency evacuation conditions. Here, longer spans minimize vulnerability to attacks or structural compromise.

Disaster Relief Operations

When flooding or earthquakes destroy permanent infrastructure, relief agencies often deploy Bailey bridges. A long-span bridge helps reach isolated areas when intermediate support construction is not viable.

Rural and Remote Area Connectivity

For underserved areas with few construction resources, a long-span Bailey bridge provides a practical solution for transportation and trade, connecting communities that would otherwise be inaccessible.

Frequently Asked Questions About Bailey Bridge Spans

Here are some commonly asked questions that clarify technical and practical concerns around Bailey bridge span limits:

Can a Bailey bridge span 100 meters?

While rare, multi-span Bailey bridge systems with intermediate supports can achieve lengths close to or even beyond 100 meters. However, this would not be a single-span structure. Single-span Bailey bridges rarely exceed 60 meters due to material stress limits.

What happens if I exceed the recommended span?

Exceeding the recommended span can cause structural deflection, panel fatigue, and even catastrophic failure under load. Proper load calculations and adherence to engineering standards are critical.

Are there modern alternatives that span longer?

Yes, there are advanced modular bridging systems and composite truss technologies capable of spanning longer distances, but they often come with increased costs, complexity, and logistical constraints.

Do longer spans require special support equipment?

Yes. For spans beyond 45 meters, launching equipment, intermediate trestles, or temporary falsework may be required. These tools help in distributing load during construction and prevent stress concentration on joints.

Conclusion

The Bailey bridge remains a cornerstone of modular bridge engineering, prized for its versatility, quick deployment, and reliability. Although the maximum single-span typically falls between 45 and 60 meters, careful design choices and structural enhancements can push that boundary further in specialized scenarios.

Understanding the maximum span capabilities of a Bailey bridge is essential for safe, cost-effective deployment, especially in time-sensitive or resource-constrained environments. Whether you're planning an emergency response or developing rural infrastructure, mastering these parameters helps you build with confidence—and with results that last.
