Introduction

The Bailey bridge, a remarkable feat of military engineering, has become an indispensable structure in both military and civilian applications. Designed during World War II for rapid deployment and high strength, it revolutionized how armies crossed rivers and ravines under hostile conditions. Today, Bailey bridges are used in disaster response, rural development, and temporary bypasses.

But when it comes to choosing a bridge for real-world load-bearing scenarios, one question repeatedly arises: how much weight can a Bailey bridge actually carry? To answer this, we must dive into its modular design, structural capabilities, standard load ratings, and real-world performance.

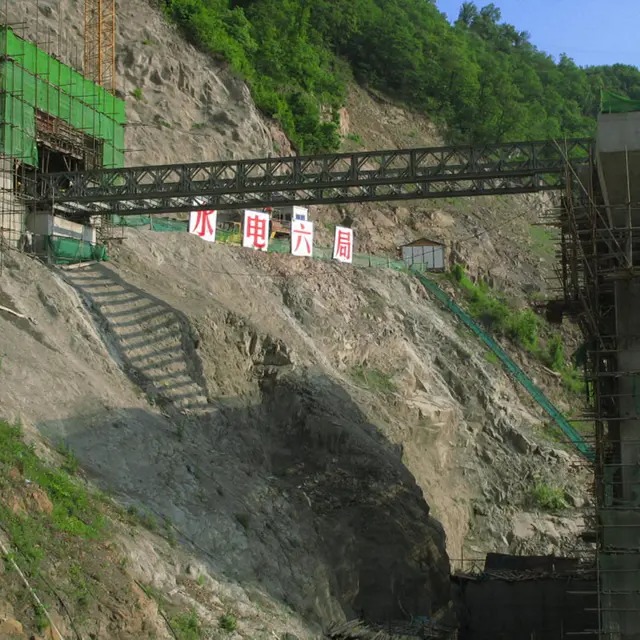

Understanding the Structural Design of a Bailey Bridge

At its core, the Bailey bridge uses modular, pre-fabricated steel panels that can be bolted together in various configurations. This modularity gives it unique flexibility. A standard Bailey bridge can be single-lane or double-lane, and can be extended or strengthened by adding extra trusses and supports.

Each panel of the bridge measures about 10 feet long and 5 feet high, and when assembled, they form a lattice-type structure that evenly distributes weight. The load-bearing capacity of a Bailey bridge depends on three main structural elements:

1. Panel arrangement (Single, Double, or Triple trusses)

2. Chord reinforcement (Reinforced or unreinforced)

3. Decking and transom spacing

For example, a triple truss design with reinforced chords and steel decking will carry significantly more weight than a basic single truss with timber decking. The inherent strength lies in its adaptability — the more weight needed, the more panels can be added to strengthen the load path.

Standard Load Ratings: Classifying Weight Capacity

Bailey bridges are typically rated using military or civil load classifications, such as Military Load Classification (MLC). These ratings determine the safe maximum load a bridge can handle under specific conditions. The table below outlines typical MLC ratings for common Bailey bridge configurations:

As seen in the table, the Double Double and Triple Triple configurations can support modern military and heavy-duty commercial transport. Civilian applications may not always require such high MLC values, but understanding them is essential when planning to move anything from construction equipment to emergency rescue vehicles.

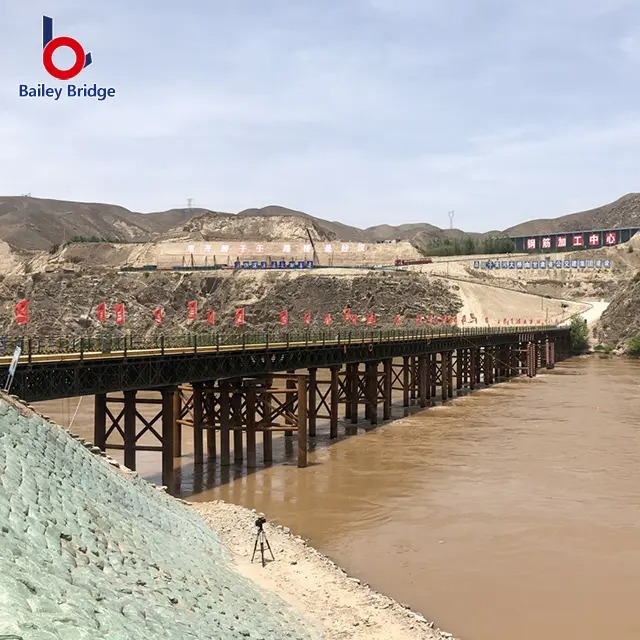

Real-World Load Capacity: How Much Can It Really Hold?

While theoretical ratings provide a clear picture, real-world usage adds another dimension. The actual weight a Bailey bridge can carry is influenced by several situational factors:

• Bridge span length: Shorter spans can carry heavier loads due to reduced moment stress.

• Foundation and abutments: Even the strongest bridge can fail if its supports are unstable or improperly constructed.

• Deck material: Steel, composite, and treated timber offer different load resistances.

• Environmental conditions: Water current, seismic activity, and temperature variations can impact performance.

A well-maintained Double Double Bailey bridge with steel decking and strong abutments can safely carry up to 80 tons (160,000 pounds) or more. That’s enough for heavy tanks, large trucks, or construction machinery. In civilian use, it's often rated for up to HS-20 or HS-25 loading standards, making it suitable for standard highway loads.

Advantages of Modular Load Adaptability

One of the most brilliant aspects of the Bailey bridge lies in its modular scalability. Need to increase load capacity? Just double the truss or add reinforcement panels. This gives engineers unparalleled control over the bridge's weight handling ability without the need for entirely new infrastructure.

Additionally, Bailey bridges can be erected manually without the use of heavy machinery, which means they can be strengthened or modified in-situ depending on evolving load demands. This is particularly valuable in remote or disaster-struck areas where flexibility can mean the difference between access and isolation.

Example Use Cases:

• Post-disaster Response: Heavy relief vehicles including bulldozers and water tankers use Triple Bailey bridges after hurricanes.

• Remote Infrastructure: Logging operations and mining access roads often deploy Bailey bridges with 50–100-ton capacity.

• Military Operations: Tracked armored vehicles, often weighing more than 60 tons, cross Bailey bridges during rapid mobilization.

Frequently Asked Questions (FAQ)

Q1: Can Bailey bridges support 18-wheelers or commercial trucks?

Yes. A Double Double or Triple Bailey bridge with reinforced decking can easily support large commercial trucks including 18-wheelers. It's important to calculate expected axle loads and distribute them evenly.

Q2: How long can a Bailey bridge span be without affecting load capacity?

Typically, spans range from 30 to 200 feet, with shorter spans offering higher load capacity. For spans above 100 feet, extra reinforcement or intermediate piers are advised to maintain optimal load distribution.

Q3: How long does it take to build a Bailey bridge strong enough for 60 tons?

A team of 8–10 skilled workers can build such a bridge within 2–4 days, depending on terrain and material readiness. Rapid construction is one of the Bailey bridge's primary strengths.

Q4: What maintenance is needed to ensure high load capacity over time?

Regular inspection for rust, joint looseness, decking wear, and abutment integrity is vital. With routine maintenance, Bailey bridges can function reliably for decades, especially in semi-permanent applications.

Q5: Are there legal limitations on load ratings in civilian use?

Yes. Most countries require compliance with national bridge standards (e.g., AASHTO in the U.S.), and require certified load tests before approval for public use.

Engineering Considerations Before Installation

Before deploying a Bailey bridge, engineers must conduct a thorough site analysis. Soil testing for abutment stability, hydrological data to account for water flow pressure, and traffic estimation are all crucial.

Load calculations must be based not just on static loads but also dynamic effects, including vehicle braking, acceleration, and lateral movement. In mountainous or seismic zones, earthquake resilience must also be incorporated. For long-term use, integrating anti-corrosion coatings, non-slip decking, and structural monitoring systems can greatly extend bridge life and reliability.

It's also wise to conduct a load test post-construction using calibrated weights. This helps confirm the bridge's real-world performance and ensures safety compliance.

Conclusion: Load Capacity Is Not Just a Number

How much weight can a Bailey bridge carry? The answer lies not just in one number but in its design configuration, material selection, and structural conditions. A standard Bailey bridge can carry anywhere from 20 tons to over 100 tons, depending on how it's built and used.

The true genius of the Bailey bridge lies in its adaptability and speed of deployment. Whether for military logistics, post-disaster recovery, or rural access, these bridges continue to serve where conventional infrastructure cannot.
