Remote areas often face a common, daunting challenge: isolation. Natural geographical barriers like deep ravines, fast-flowing rivers, and rugged mountain terrain can cut off communities from essential services. Traditional concrete bridges take months or years to design and build. In the event of a natural disaster, waiting that long isn't an option. This is where the Portable Bailey Bridge becomes a life-saving infrastructure tool. Originally designed for military use, this Modular bridging system has evolved into a global standard for civilian disaster relief and rural development. It provides a Rapid deployment solution that restores connectivity in days rather than months. By using Prefabricated steel components that fit together like a giant construction set, we can overcome even the most difficult logistical hurdles. This article explores how these versatile structures bridge the gap between isolation and opportunity.
The brilliance of a Portable Bailey Bridge lies in its simplicity and strength. It uses a truss system where the main load-bearing components are rectangular panels. These panels are light enough to be carried by small trucks but strong enough to support heavy machinery once they are pinned together. This Modular design means we can adjust the bridge's length and carrying capacity by adding more panels or "doubling up" the trusses.
Most infrastructure projects fail in remote areas because bringing heavy mixing equipment and specialized labor to the site is too expensive. A Prefabricated bridge solves this. We manufacture every pin, bolt, and panel in a controlled factory environment. This ensures that every piece fits perfectly. When it reaches the site, the assembly team only needs basic hand tools and a small crane or even just a launching nose to slide the bridge across the gap.
In humid or coastal remote regions, rust is the enemy. A Galvanized Portable Bailey Bridge uses a thick coating of zinc to protect the steel. It prevents corrosion for decades, even without regular painting. This makes it the perfect "set it and forget it" solution for rural governments with limited maintenance budgets.
Feature | Traditional Concrete Bridge | Portable Bailey Bridge |
|---|---|---|
Construction Time | 6–18 Months | 3–10 Days |
Cost Efficiency | High initial investment | Low to Moderate |
Portability | None (Fixed) | Highly Portable |
Lifespan | 50+ Years | 50+ Years (if Galvanized) |
Skill Required | Specialized engineers/masons | Basic assembly crew |
By prioritizing Rapid deployment, we ensure that a broken link in the supply chain doesn't lead to a long-term economic crisis for a village.
Getting materials to a remote site is usually the hardest part of construction. Standard bridge beams are too long for narrow, winding mountain roads. However, a Portable Bailey Bridge is designed for exactly these conditions. Because it consists of small, manageable parts, they fit into standard shipping containers or small 4x4 trucks.
We often see these bridges deployed in places where there are no paved roads. The Military origins of the design meant it had to be moved by soldiers in the mud. Today, that means we can fly components into a valley via helicopter or float them down a river on barges. Once the parts arrive, they don't require massive foundations. A simple concrete pad or even a well-compacted stone abutment is often enough to support the structure.
One of the most impressive features of the Portable Bailey Bridge is that it can be built without a crane on the opposite side of the river. We use a "launching nose"—a lightweight skeletal extension—to push the bridge across the gap from one side. As the bridge rolls forward on specialized rollers, the nose reaches the far bank first, acting as a guide. It is a masterpiece of mechanical advantage that makes Emergency access possible in the most restricted environments.
Imagine a village where the only road was washed away by a monsoon. A traditional construction crew would spend weeks just clearing the site. An Emergency Portable Bailey Bridge team can arrive, assemble the rollers, and have a 30-meter span across the water in under 72 hours. It restores the flow of food, medicine, and personnel immediately.
While the Military Portable Bailey Bridge was famous for helping Allied forces cross the Rhine in WWII, its modern applications are far more diverse. It serves as a temporary bypass during highway repairs, a permanent rural crossing, or a quick-fix after a bridge collapse.
When an earthquake or hurricane hits, time is the most valuable resource. We use the Rapid deployment capability of these bridges to reconnect hospitals and relief centers. Because they are Modular, they can be taken down once a permanent bridge is built and stored in a warehouse for the next disaster. This "recyclability" makes them a sustainable choice for disaster management agencies.
In many remote areas, the primary economic driver is mining or logging. These industries need to move massive loads across temporary gaps. A Heavy-Duty Portable Bailey Bridge can be reinforced by stacking panels (Double-Single or Triple-Double configurations) to support 60-ton or even 100-ton trucks.
Temporary Bypasses: Keeps traffic moving while the main road is under construction.
Logging Roads: Provides a stable crossing for timber transport in forests.
Pedestrian Access: Smaller versions provide safe walking paths for children going to school in mountainous regions.
By using Modular components, we can build a bridge that fits the specific weight requirement of the user. You don't have to over-engineer a small footbridge, but you can easily strengthen a vehicle bridge if the project needs change.
One major concern in remote areas is that once a bridge is built, nobody goes back to maintain it. If a steel bridge isn't protected, it will weaken over time. This is why we advocate for the Galvanized Portable Bailey Bridge.
Hot-dip galvanizing involves submerging the steel components in a bath of molten zinc. This creates a metallurgical bond. Unlike paint, which can flake or peel, the zinc layer becomes part of the steel itself. It provides "sacrificial protection," meaning even if the bridge is scratched, the surrounding zinc will corrode before the steel does.
Initial Cost: Galvanizing adds a small percentage to the upfront cost.
Long-term Savings: It eliminates the need for repainting every 5-10 years. In remote areas, the cost of sending a painting crew (including travel, lodging, and materials) often exceeds the cost of the paint itself.
Safety Assurance: A bridge that doesn't rust is a bridge that stays strong. Residents in remote areas can trust that the Portable Bailey Bridge will remain safe for their children and their vehicles for decades.
We also consider the environment. Painting bridges often results in chemicals leaching into the river below. Galvanized steel is clean and inert once it is installed. It doesn't require toxic cleaners or frequent chemical applications, making it a "green" choice for pristine wilderness areas.
To truly understand how a Portable Bailey Bridge improves access, we must look at the assembly process. It is a symphony of coordinated effort that requires very little power equipment.
We start by leveling the ground on both sides of the gap. Since the Prefabricated components are standardized, we know exactly where the base plates will sit. This eliminates the guesswork that often delays construction projects.
Rollers are placed on the "near bank." The first few panels are pinned together to form the launching nose. This nose is light and angled upward so it doesn't sag as it moves across the air.
The Panels: Each 3-meter panel is added one by one.
The Transoms: These are the cross-beams that hold the two sides of the bridge together.
The Bracing: Sway braces and rakers are added to ensure the bridge doesn't twist under load.
The Decking: We install steel or timber "chesses" (decking) once the bridge is in place.
Once enough panels are added to counterbalance the weight, we push the bridge. A small tractor or a team of workers using jacks can move a massive Portable Bailey Bridge across the river. Once it reaches the other side, the nose is removed, and the bridge is "jacked down" onto its permanent bearings.
Because the system is Modular, checking for safety is easy. We look for the presence of all pins and the tightness of the bolts. It is a visual, intuitive process that reduces the risk of human error during Emergency installations.
Improved access isn't just about moving cars; it's about moving lives. When a Portable Bailey Bridge is installed, the transformation of a community is almost immediate.
In many remote regions, "preventable" deaths occur because patients cannot reach a hospital in time. A broken bridge is a death sentence for someone in labor or a person with a severe injury. Rapid deployment of a bridge can literally mean the difference between life and death. It allows ambulances and medical supply trucks to reach the heart of the community.
Children often have to cross dangerous rivers on ropes or makeshift rafts to reach school. A stable Prefabricated bridge provides a safe, all-weather path. Furthermore, farmers in remote areas often lose their crops because they can't get them to market before they spoil. A Portable Bailey Bridge allows heavy trucks to pick up produce directly from the farm, increasing the income of rural families.
Isolation leads to the erosion of culture and community. When we provide a Modular bridging solution, we allow families to visit one another and government services to reach the people. It integrates remote villages into the national economy, fostering a sense of belonging and security.
Not every gap is the same, and not every load is the same. The Portable Bailey Bridge is highly customizable.
We offer various configurations based on the "Panel" system. The most common is the 200-Type Bailey Bridge, which uses taller panels for increased strength and longer spans.
Single-Single (SS): One truss on each side, one story high. Good for short spans and light vehicles.
Double-Single (DS): Two trusses on each side, one story high. This is the "workhorse" for most rural roads.
Triple-Double (TD): Three trusses on each side, two stories high. This configuration can span over 60 meters and carry heavy industrial loads.
Panels: The main vertical trusses.
Transoms: Horizontal beams supporting the deck.
Stringers: Longitudinal beams sitting on transoms.
Decking: The driving surface (Steel or Wood).
Panel Pins: The high-tensile steel pins that lock everything together.
End Posts: The components that transfer the load to the ground.
By maintaining a large stock of these Prefabricated parts, we ensure that we are always ready for a Rapid deployment request.
The Portable Bailey Bridge is more than just a piece of engineering; it is a tool for human progress. By solving the problems of Rapid deployment, durability through Galvanization, and logistical ease via Modular design, we have created a way to bring the world closer together. Whether it is an Emergency after a flood or a planned development project for a mountain village, these bridges provide a reliable, cost-effective, and fast solution to isolation. As we look to the future, the ability to quickly and safely connect remote areas will remain a cornerstone of global infrastructure development.
At our facility, we take immense pride in being a leading Bailey Steel Bridge manufacturer. We don't just sell components; we provide security. Our factory is equipped with state-of-the-art automated welding lines and high-precision CNC machining centers to ensure every Prefabricated part meets the strictest international standards. We specialize in the 200-Type and Compact-100 systems, maintaining a massive inventory for Rapid deployment and Emergency needs. With decades of experience in Galvanized steel production, we have supplied thousands of bridges to over 50 countries, helping governments and private sectors overcome the toughest geographical challenges. When you choose our bridges, you are choosing a legacy of strength, precision, and a commitment to connecting the world's most remote places. We invite you to visit our production base to see firsthand how we turn raw steel into the lifelines of tomorrow.
With proper Galvanization, a bridge can last over 50 years. The steel itself is high-strength, and the zinc coating protects it from the elements. Even temporary bridges are often left in place for decades because they remain so stable.
Yes! That is the beauty of the Modular design. You can disassemble the bridge, transport the pieces to a new location, and rebuild it. This makes it highly cost-effective for construction companies that need temporary access for different projects.
A small team of 10 to 15 people can typically assemble a medium-sized Portable Bailey Bridge. While a crane makes the job faster, it is not strictly necessary if you use a launching nose and manual jacks.
Absolutely. By using configurations like "Triple-Double," we can support weights exceeding 60 tons. We always calculate the "Load Class" before recommending a specific Modular setup to ensure total safety for the intended traffic.

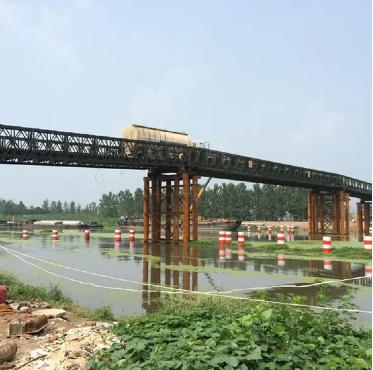

A single span can comfortably reach 60 to 70 meters without intermediate supports. If the gap is wider, we can use "multi-span" configurations by placing piers in the middle of the river or valley.
