What is the difference between a truss and a trestle? A truss and a trestle may seem similar, but they serve distinct roles in construction. Have you ever wondered how they differ in design and application? In this post, we'll break down the differences between these two structures, explain their purposes, and help you decide when each one is best suited for your project.

What is a Truss?

Purpose of a Truss

A truss is a framework made of interconnected elements, mainly using triangular shapes. These triangular units help distribute weight efficiently across long spans, making them perfect for supporting heavy loads over great distances. Trusses are commonly used in structures where stability and strength are crucial, such as bridges or large buildings.

Materials Used for Trusses

Trusses can be made from different materials, depending on their application. Wood, steel, and concrete are all commonly used, with each material impacting the truss’s weight capacity, flexibility, and intended use. Steel trusses are often found in large-scale constructions, while wood is more common in residential roofing.

Common Types of Trusses

• Triangular Trusses: These trusses are widely used for steeply sloped roofs in both residential and industrial buildings. Their triangular shape efficiently distributes weight, making them ideal for roofs that need to support significant loads over long spans, such as in warehouses or homes with attics.

• Trapezoidal Trusses: These are commonly found in bridge designs and large roofing structures. The trapezoidal shape helps to create a stable and balanced load distribution, making it suitable for longer spans, such as in highway bridges, airport terminals, and large commercial buildings.

• Parallel Chord Trusses: Used in bridge construction and for workshops that need extra wind resistance, parallel chord trusses are designed to provide support across long distances. Their uniform shape allows them to bear heavy loads, often used in elevated structures like pedestrian bridges, factory roofs, and wind-resistant towers.

Examples of Truss Uses

• Bridge Spans: Used to support roadways and railways.

• Roof Structures: Especially for large, sloped roofs in industrial buildings.

• Transmission Towers: For holding up power lines over large areas.

• Crane Systems: Trusses support crane structures in industrial settings.

• Industrial Workshops: They provide support for large, open indoor spaces.

Types of Truss Bridges

• Through Trusses: Where the deck is placed below the truss structure.

• Deck Trusses: Where the deck sits above the truss, hiding the structural elements underneath.

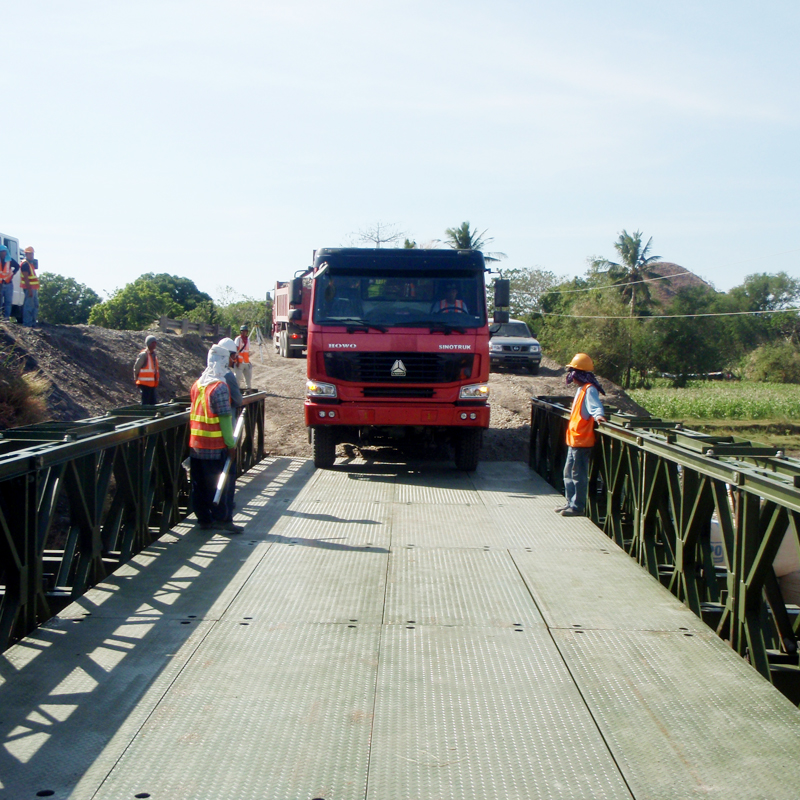

• Bailey Bridges: These portable and prefabricated bridges are often used for temporary crossings or emergency repairs.

What is a Trestle?

Purpose of a Trestle

A trestle is a type of support structure, either temporary or permanent, made up of vertical posts connected by horizontal beams. It is commonly used to support platforms, decks, or other structures elevated above the ground. Trestles are essential in construction, scaffolding, and even in some bridge designs, offering stability and a strong foundation.

Materials Used for Trestles

Trestles can be made from wood, steel, or concrete. The choice of material depends on factors like cost, load requirements, and the environment. Steel and concrete are ideal for permanent, heavy-duty structures, while wood is often used for temporary supports or smaller applications.

Key Structural Components of Trestles

• Posts/Columns: Vertical components that bear the weight of the structure and provide support.

• Beams/Girders: Horizontal elements connecting the posts, distributing the load evenly.

• Bent Frames: Modular frames used in construction, helping to spread weight across the entire structure.

Examples of Trestle Uses

• Bridge Supports: Trestles are commonly used as part of bridge structures, especially for shorter spans.

• Scaffolding: Trestles act as support for scaffolding in construction projects, providing a secure platform for workers.

• Construction Platforms: Used to elevate structures during construction, giving workers a stable working surface.

• Temporary Supports for Equipment: When equipment needs to be elevated for maintenance or installation, trestles provide a safe and sturdy platform.

• Access Platforms: Used in industrial settings or construction sites to give workers access to high areas safely.

Key Differences Between a Truss and a Trestle

Function and Application

• Truss: A truss is designed to distribute loads efficiently over long spans. It is often used in bridges, large buildings, and other structures where heavy loads need to be supported across wide distances. Trusses are especially helpful for projects that require stability and strength over vast areas.

• Trestle: A trestle serves a different purpose. It is primarily used to elevate structures, whether temporarily or permanently. Trestles provide stable support for platforms, decks, or construction projects, often used in scaffolding, construction sites, or bridge supports. They are less about spanning distances and more about providing solid, elevated support.

Structural Design and Shape

• Truss: A truss is made up of interconnected triangular units. These triangles help distribute weight evenly across the structure, making it strong and stable. The design allows trusses to span long distances, supporting heavy loads efficiently.

• Trestle: A trestle is composed of vertical posts connected by horizontal beams. It offers modular support but is more limited in span compared to a truss. The design is ideal for providing elevated support in construction or temporary platforms, but it doesn't span as far as a truss can.

Span Lengths and Load Distribution

• Truss: Trusses are designed to span longer distances. Their triangular units help distribute weight evenly, allowing them to handle larger loads over greater spans. This makes them ideal for bridges, roofs, and other large structures that require long, stable spans.

• Trestle: Trestles, on the other hand, are used for shorter spans. Their modular design is well-suited for supporting smaller platforms or decks, typically in construction or temporary applications. Trestles do not cover as long distances as trusses but provide strong support for shorter lengths.

Complexity and Cost of Construction

• Truss: Designing and building a truss is more complex, requiring careful calculations and planning. However, they are more material-efficient, especially for long spans. The intricate design makes them more costly to construct but ideal for large, heavy-duty structures.

• Trestle: Trestles are simpler to build, requiring less detailed design and fewer materials. Because of their straightforward construction, they are often more affordable, especially for temporary uses or smaller projects where span length isn’t an issue.

Material Selection for Each Structure

• Truss: Steel is the most commonly used material for trusses because it can support heavy loads over long distances. Steel’s strength and durability make it ideal for large-scale projects like bridges and industrial buildings.

• Trestle: Trestles are typically made of wood or steel. The choice of material depends on how long the structure is needed and the weight it must support. Wood is often used for temporary trestles, while steel is chosen for more permanent or heavy-duty applications.

Trusses and Trestles in Bridge Construction

Truss Bridges

Truss bridges are built using interconnected triangular elements to support traffic or railways. Their design allows them to span long distances while bearing heavy loads. Steel truss bridges are especially durable and strong, making them perfect for large-scale infrastructure projects like highway bridges and railway crossings.

Trestle Bridges

Trestle bridges consist of a series of short spans, each supported by multiple trestles. These bridges are often used in areas with unstable soil or where longer spans aren't needed. Trestles also provide temporary support for other bridge types, including trusses, during construction or repairs.

Comparing Their Roles in Modern Infrastructure

Trusses and trestles both play important roles in bridge construction but serve different purposes. Trusses are typically used for long spans and heavy-duty applications, while trestles are more suited for shorter spans or as temporary supports during construction.

Examples of Historical and Modern Bridge Uses

• Historical Use: In the 19th century, timber and iron trestles were commonly used in railroad networks.

• Modern Use: Today, steel and concrete trestles are often used to bridge deep valleys or unstable ground, while truss bridges remain the go-to option for spanning large distances.

Choosing the Right Structure: Truss vs. Trestle

When to Use a Truss

• For long spans: Trusses are perfect when you need to cover large distances, like in bridges or wide-roofed buildings.

• When greater load distribution is needed: The triangular design helps evenly distribute weight across the structure, making trusses ideal for heavy-duty applications.

• In heavy-duty construction like bridges: Trusses are built for tough projects, such as highway bridges, where durability and strength are critical.

• In permanent infrastructure requiring high strength: For structures meant to last, such as transmission towers, trusses offer the required strength and stability.

When to Use a Trestle

• For temporary structures or platforms: Trestles are often used in construction sites to provide quick and easy support.

• In construction sites or areas with unstable soil: Trestles are great for areas where the ground is too unstable for traditional foundations.

• When shorter spans are sufficient: They are perfect for smaller projects or when long spans aren't necessary.

• In scaffolding or access platforms: Trestles can be used to create stable working platforms, giving workers access to high or difficult-to-reach areas.

Design Considerations

Structural Efficiency and Safety

Trusses are known for their efficiency in distributing loads evenly, which makes them ideal for large-scale structures like bridges and high-rise buildings. Their triangular design ensures strength while using minimal material. On the other hand, trestles provide safety through modular support, which makes them perfect for temporary structures. However, they are more limited in their load capacity and span length compared to trusses.

Material Durability and Environmental Factors

Steel trusses are incredibly durable and can withstand harsh weather conditions, making them perfect for long-lasting infrastructure. Trestles, while cost-effective, may require more maintenance, especially if they are made of wood. In areas with heavy rainfall, humidity, or extreme temperatures, wood can degrade faster, whereas steel or concrete trestles last longer but are more expensive.

Cost Considerations for Large and Small Projects

Trusses tend to be more expensive because of their complex design and material needs. However, they are more cost-effective in the long run when used in large spans, as they reduce the need for frequent support columns. Trestles are simpler to design and build, making them more budget-friendly for smaller projects or temporary uses, but they may not offer the same long-term benefits as trusses in large-scale applications.

Conclusion

While trusses and trestles may appear similar, their differences in design, function, and application are significant. Trusses, built with interconnected triangular elements, are designed for long spans and can efficiently distribute heavy loads across large distances. This makes them ideal for large, permanent structures like bridges and high-rise buildings. On the other hand, trestles consist of vertical posts and horizontal beams, providing modular support that’s more suited for temporary structures or shorter spans. Understanding the distinct benefits and limitations of each can guide better decision-making in construction and design, ensuring the right framework is chosen for the specific project needs.

FAQ: What is the Difference Between a Truss and a Trestle?

Q: What is the primary function of a truss?

A: A truss is designed to distribute loads efficiently across long spans, making it ideal for large structures like bridges and roofs.

Q: Can trestles be used for large-scale projects?

A: Trestles are generally used for shorter spans or temporary structures. They are better suited for small-scale or temporary support needs.

Q: Why are trusses more complex to build than trestles?

A: Trusses require intricate design calculations due to their use of triangular elements to distribute loads, whereas trestles are simpler and more modular.

Q: What materials are commonly used in trusses and trestles?

A: Trusses are commonly made from steel for strength, while trestles can be constructed from wood, steel, or concrete depending on the use.

Q: When should I use a truss over a trestle?

A: Use a truss for long spans, heavy-duty applications, or permanent infrastructure, while a trestle is better for temporary support or shorter spans.
